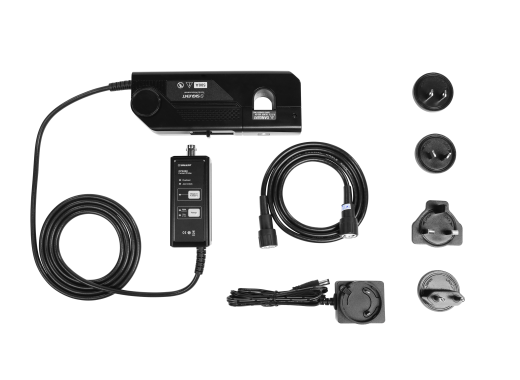

Siglent CP6500 current probe
Details
The Siglent CP6500 Current Probe is the ideal measuring device for high frequencies. It can operate in the frequency range up to 5 MHz. The current probe has two settings. In the first one it can measure maximum currents up to 75 A and in the second one it has a maximum of 500 A. Both settings have a accuracy of 1%.
Specifications:
| Bandwidth(-3dB) | DC-5 MHz |
| Rise Time | <= 70 nS |
| Range | 500 Arms |
| Peak-peak value | 750 A |
| Accuracy | 75A: (1% 10mA), 500 A: (1% 100mA) |
| Maximal voltage isolated wire | 600V CATII, 300V CATIII |
| Power supply | DC 12V/1.2A |
| Cabel length | 1.5 m |
Accesories
The Siglent CP6500 gets delivered included:
- Power supply
- BNC cable
Downloads
| CP6000 datasheet |  (1.28 MB) | Download |
| CP6000 extended datasheet | (1.55 MB) | Download |
