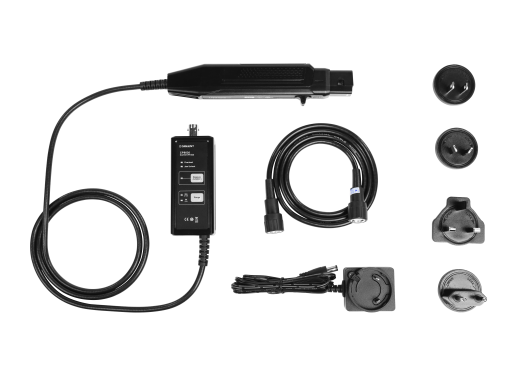

Siglent CP6030 current probe
Details
The Siglent CP6030 Current Probe is the ideal measuring device for high frequencies. It can operate in the frequency range up to 50 MHz. The current probe has two settings. In the first one it can measure maximum currents up to 5 A and in the second one it has a maximum of 30 A. Both settings have a accuracy of 1%.
Specifications:
| Bandwidth(-3dB) | DC-50MHz |
| Rise Time | <= 3.5nS |
| Range | 30Arms |
| Peak-peak value | 140A |
| Accuracy | 5A: (1% 1mA), 30A: (1% 10mA) |
| Maximal voltage isolated wire | 600V CATII, 300V CATIII |
| Power supply | DC 12V/1.2A |
| Cable length | 1.00m |
Accesories
The Siglent CP6030 gets delivered included:
- Power supply
- BNC cable
Downloads
| CP6000 datasheet |  (1.28 MB) | Download |
| CP6000 extended datasheet | (1.55 MB) | Download |
