Sensepeek 6029 PCBite kit with 2x SQ500 500MHZ and 4x SQ10 handsfree probes
Details

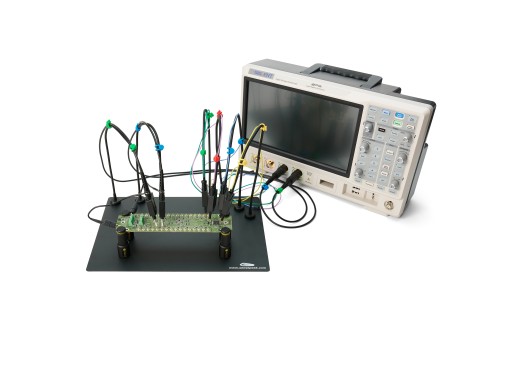

This Sensepeek kit (6029) comes with everything you need for hands-free measurements. This kit is especially useful if measurements are being conducted from a logic analyser or an oscilloscope. The included high-precision probes can be positioned very precisely on a trace or component of the PCB. Furthermore, the kit comes with 2x SQ500 - 500 MHz hands-free oscilloscope probes and 4x SQ10 probes. The included Base plate has a matte side and a polished side. The polished side can help with looking at the other side of the pcb, There is also a protective cover included.
Specifications
The specifications for the SQ10 probes are listed in the table below.
| Bandwidth | 10MHz |
| Rise time | 34ns |
| Attenuation | 1:1 |
| Needle resistance | 0,02Ω |
| Overvoltage protection | 200V(DC/Peak AC) |
| Max. input voltage | ±60V(DC)/30V(AC RMS) |
| Max. DC current | 2A |
| Probe tip diameter | 0,5mm |
Specifications
The specifications for the SQ500 probes are listed in the table below.
| 3 dB bandwidth | DC to 500MHz |
| Capacitance at probe tip | 9pF |
| Attenuation | 10:1 |
| Resistance at probe tip | 10MΩ |
| Scope input impedance | 1MΩ |
| Maximum working voltage | 150VRMS |
| Temperature range | -20℃ - +50℃ |
| Probe tip diameter | 0.5mm |
| Weight | 40g |
Accessories
The Sensepeek 6029 PCBite kit comes by default with:
- 4 x PCBite holder
- 1 x Large base plate (A4)
- 4 x SQ10 probes
- 1 x Set of yellow insulation washers
- 5 x Dupont to dupont test wires
- 2 x Banana to dupont test wires
- 2x SQ probe holder for handsfree measurement
- 2x Testhook with detachable cables (5cm & 10cm) for convenient ground connection
- 2x Alligator cable for convenient ground connection
- 2x Standard ground spring, for handheld measurements at rated bandwidth
- 2x Unique ground spring, for total handsfree measurements at rated bandwidth
- 2x Set of color coded cable holders (4 colours)
- 2x Probe tip protection
- 6x Extra test needle
Pros and cons
- Hands-free measuring
- Includes probes with a large bandwidth
