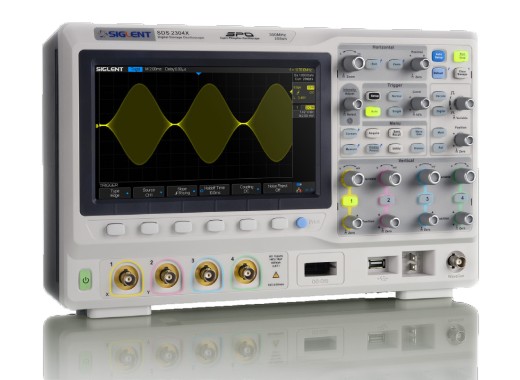

Scopes in the SDS2000X series are advanced 2 or 4 channel scopes that are the direct successors of the 2000 series. These scopes offer an 8" colour display and a capture rate of 140.000 wfm/s. The 2000X feature a massive 140 Mpts memory to allow for a large amount of data to be stored.

The scopes are available with 2 or 4 channels, and ranging from 70 up to 300 MHz bandwidth.

The 2000X applies the newest SPO Technologies with decreased jitter and a more sensitive triggering compared to the 2000 series. The triggering system supports a multitude of triggering types. Due to the improved SPO the scopes suffer less from background noise. Apart from normal 256-level intensity grading this scope can also display how often a value is present in the signal using colour temperatures. This allows the user to quickly analyse the signal that is displayed.

Apart from the already high 140.000 wfm/s capture rate, which is called 'normal mode', the scopes also offer a sequence mode that offers a capture rate of up to 500.000 waveforms/second. The scope takes a larger chunk of the signal and analyses the data all at once. This can offer advantages for debugging a signal.

The scopes offer a multitude of automated measurement functions and mathematical operations. Apart from that it is possible to store 80.000 frames that can be recalled individually. Combining this with minimal dead time allows the user to easily recognize irregularities with signals.

Promotion

For a limited time you get a free upgrade on these scopes, the prices are adjusted to match the lower bandwidth models. This means you can for example get the 100 MHz version for the price of the 70 MHz one.

Bundle discount until 31 December 2020

When purchasing the following options: SDS-2000X-DC, SDS-2000X-FG, SPL2016 hardware & SPL2016 software for the 2000X series, you will receive a bundle discount of €379.84. These four options can be found at the bottom of this page.
The discount is automatically added when you have these four products in your shopping cart.In addition, there is now a temporary extra discount! When you order an oscilloscope from the SDS2000X series (only the 100/200/300 MHz models) together with the total bundle, you get an extra discount of 5%!

Models

The models in the SDS2000X series differ mainly in bandwidth. Apart from that, models where the number ends with a 2 are 2-channel scopes. Models where the number ends in 4 are 4-channel scopes. In other properties, models within a series are identical.

Model	SDS2072X/ SDS2074X	SDS2102X/ SDS2104X	SDS2202X/ SDS2204X	SDS2302X/ SDS2304X
Channels	2/4	2/4	2/4	2/4
Analogue bandwidth	70 MHz	100 MHz	200 MHz	300 MHz
Sample rate (2 channels active)	2 GS/s	2 GS/s	2 GS/s	2 GS/s
Sample rate (4 channels active)	1 GS/s	1 GS/s	1 GS/s	1 GS/s

Specifications

Memory size	140 Mpts
Display	8" TFT, 800x480 pixels
Imput impedance	1 MΩ
Rise Time	SDS207x ≤5.0 ns SDS210x: ≤3.5 ns SDS220x: ≤1.7 ns SDS230x: ≤1.2 ns
Horizontal scale	1 ns/div - 50s/div
Vertical sensitivity	1 mV/div - 10 V/div
A/D converter	8 bits resolution
Maximal voltage	400V (peak - peak)
Waveform capture rate (max)	140.000 wfm/s (normal) 500.000 wfm/s (sequence modus)
Probe support	1x, 10x, 50x, 100x, 500x, 1000x, 2000x, 5000x, 10.000x
Connectivity	USB (host & device), LAN, Pass/Fail, Trigger
Weight (without box)	3.4 Kg - 3.6 Kg
Dimensions	352 x 128 x 224 mm (LxBxH)

For more information, the manual can be downloaded.

Options

16 channel logic-analyser	This 16 channel logic analyser makes it possible to analyse digital signals. The specifications of this product can be found on the page on the right.
Serial Decoding	Serial decoding allows you to decode the most common serial protocols such as IIC, SPI, UART/RS232, CAN, LIN on the scope.	SDS-2000X-DC 157.02 €157.02 Excl. VAT Info
Function generator	This option adds a 25 MHz arbitrary function generator to the scope.	SDS-2000X-FG 157.02 €157.02 Excl. VAT Info
