Rohde & Schwarz ZPH-COM1 bundle

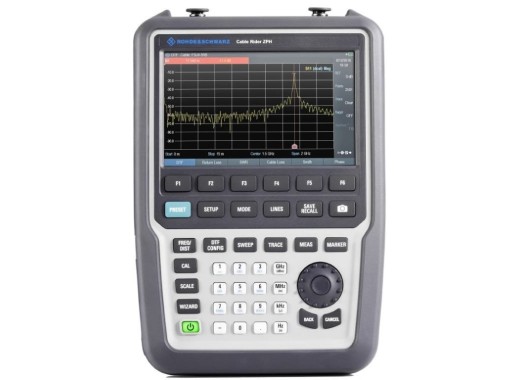

The Rohde & Schwarz Cable Rider ZPH-COM1 is a bundle containing the ZPH.02 which is a single-port handheld cable and antenna analyser. It has all the essential measurement capabilities required for installing and maintaining antenna systems out in the field. Its unique features ensure fast and efficient cable and antenna measurements. It features a large colour touchscreen and a large keypad designed for extra convenience. This single-port model has DTF, reflection measurement and single-port cable loss CAT functionality. Combined with a 9-hour battery life and ruggedised housing (IP51), it is perfectly suited to survive field use conditions. Additionally, the device has GPS support out of the box. You can hook up the ZPH.02 to a commercially available wireless router (not included) and use apps on your phone or tablet to remote control the analyser. More traditional USB connections are also an option. The required driver comes with the R&S InstrumentView software package.

The Rohde & Schwarz ZPH-COM1 consists of:

• Rohde & Schwarz ZPH.02 cable rider
• ZPH-B4 Frequency upgrade, 3 GHz to 4 GHz
• ZPH-B10 GPS-Support
• ZPH-K9 Power sensor support
• ZPH-K19 Channel power meter
• ZPH-K29 Pulse measurements with power sensor

If you need a specific configuration, please contact us and we will arrange the product in the desired configuration.

Specifications

For more specific details, reference the datasheet below.

Accessories

The following is included with the product:

• Lithium-ion battery pack
• USB cable
• AC power supply
• Side strap

Downloads

R&S ZPH - Specification sheet	(1.05 MB)	Download
R&S ZPH - User manual	(11.65 MB)	Download
