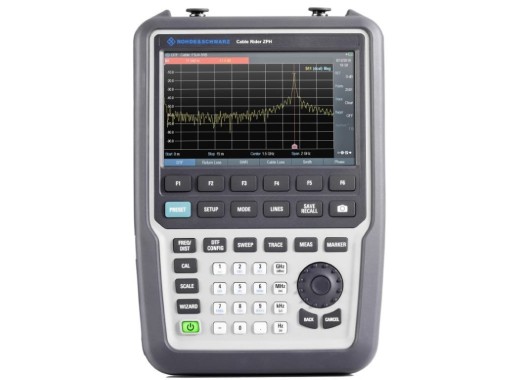

Rohde & Schwarz ZPH.12 cable rider
Details
The Rohde & Schwarz ZPH.12 cable rider is a two-port handheld cable and antenna analyser. It has all the essential measurement capabilities required for installing and maintaining antenna systems out in the field. Its unique features ensure fast and efficient cable and antenna measurements. It features a large colour touchscreen and a large keypad designed for extra convenience. This two-port model has DTF, reflection measurement and two-port cable loss CAT functionality. Combined with a 6.5-hour battery life and ruggedised housing (IP51), it is perfectly suited to survive field use conditions. You can hook up the ZPH.02 to a commercially available wireless router (not included) and use apps on your phone or tablet to remote control the analyser. More traditional USB connections are also an option. The required driver comes with the R&S InstrumentView software package.
The ZPH.12 is also available in a bundle, this includes several additional functions, for more details see the this page.
Model overview
| Models | ZPH.02 | ZPH.12 |
|---|---|---|
| Number of ports | 1 | 2 |
| Tracking generator | No | Yes |
| DC bias | No | Yes |
| Operating time (Default mode) | 9 hours | 6.5 hours |
| Price |
Specifications
| Bandwidth | 2 MHz - 3 GHz |
| RBW | 1 Hz - 3 MHz |
| DANL | < - 140 dBm/ Hz |
| Amplitude accuracy | < 3.1 dB |
| Measurements | Reflection (S11), One-port cable loss, distance-to-fault, VSWR, |
| Interfaces | RF, LAN, USB, mini USB |
| Display | 800 x 480 pixel WVGA touchscreen |
| Dimensions | 202 x 294 x 76 mm |
| Weight | 2.5 kg |
Accessories
The ZPH.12 comes by default with:
- Power cable and adapter set
- USB cable
- Shoulder strap
Downloads
| R&S ZPH - Specification sheet |  (1.05 MB) | Download |
| R&S ZPH - User manual | (11.65 MB) | Download |
