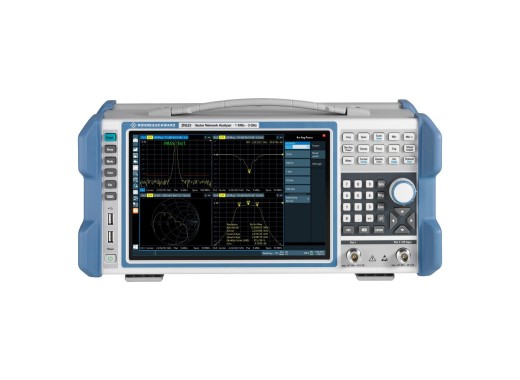

Rohde & Schwarz ZNLE3 vector network analyser
Details
The Rohde & Schwarz ZNLE3 vector network analyser is a VNA part of the ZNLE series with a frequency range of 1MHz - 3GHz. The ZNLE3 has a two-port design that allows for bidirectional measurements and offers a low trace noise of 0.001dB. This results in highly accurate and stable measurements even at wider bandwidths. The ZNLE series is a completely standalone vector network analyser with a fully integrated PC with Windows 10. It also features a wide 10.1" capacitive touchscreen for convenient configuration with multitouch gesturing. Finally, the ZNLE series VNA features USB and LAN interfaces.
For a vector network analyser without the fully integrated PC, please check out the Rohde & Schwarz ZNL series.
Model overview
| Model | ZNLE3 | ZNLE4 | ZNLE6 | ZNLE14 | ZNLE18 |
|---|---|---|---|---|---|
| Bandwidth | 1 MHz - 3 GHz | 1 MHz - 4.5 GHz | 1 MHz - 6 GHz | 1 MHz - 14 GHz | 1 MHz - 18 GHz |
| Price |
Specifications
| Ports | 2 |
| Frequency resolution | 1 Hz |
| Amplitude resolution | 0.01 dB |
| IFBW | 1 Hz - 500 kHz |
| Dynamic range | 120 dB (typ.) |
| Noise floor | -130 dBm/Hz (typ.) |
| Max. input level | +15 dBm |
| Interfaces | USB host/device, LAN, RJ-45 |
| Display | 10.1" WXGA color touchscreen LCD |
| Dimensions | 408 x 186 x 235 mm |
| Weight | 6 kg |
Accessories
The following accessories are included with the ZNLE series:
- Power cord
Downloads
| R&S ZNL_ZNLE - User manual |  (25.8 MB) | Download |
| R&S ZNLE- Datasheet | (1.59 MB) | Download |
