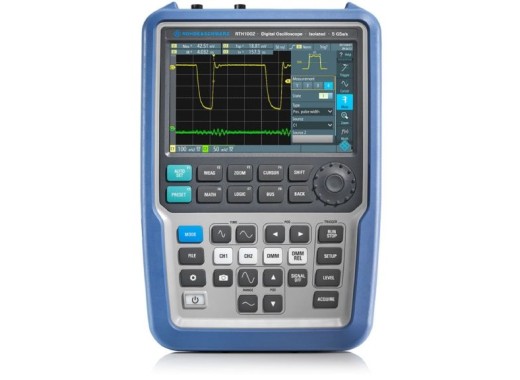

Rohde & Schwarz RTH-BNDL bundle
Promotion! This product is temporarily reduced in price until September 30th 2026!
Details
The Rohde & Schwarz RTH-BNDL contains the RTH1004 which is a 4-channel oscilloscope in the RTH1000 series from Rohde & Schwarz. The RTH1004 is a robust handheld oscilloscope with a high vertical sensitivity of 2 mV/div. The bundle comes with the option that increases the bandwidth up to 500 MHz. The scope has a digital trigger system, which has the best trigger sensitivity for handheld oscilloscopes. Furthermore, there are 33 automatic measuring functions available, so that the RTH1000 series oscilloscopes offer the same possibilities as laboratory oscilloscopes. The RTH1000 series scopes comply with the CAT IV 600 V safety standards.
RTH-BNDL
This bundle features the following:
- RTH-B244 500 MHz bandwidth upgrade
- RTH-K1 I2C/SPI serial triggering and decoding
- RTH-K2 UART/RS232 serial triggering and decoding
- RTH-K3 CAN/LIN serial triggering and decoding
- RTH-K9 CAN-FD serial triggering and decoding
- RTH-K10 SENT serial triggering and decodinge
- RTH-K15 History & Segmented Memory
- RTH-K18 Spectrum analysis
- RTH-K19 Advanced trigger functionality
- RTH-K33 Frequency counter (2 channels)
- RTH-K34 Harmonic analysis
- RTH-K38 User scripting
- RTH-K201 Web interface remote control
Specifications
| Channels | 4 |
| Maximum sample rate | 5 GSa/s |
| Maximum memory depth | 500 kPts |
| Bandwidth | 500 MHz |
| Waveforms capture speed | 50000 wfms/s |
| Trigger types | Edge, Pulse width, Video |
| Waveform math | Add, subtract, multiply, divide, quadrate, absolute value, inverse |
| Vertical scale | 2 mV/div - 100 V/div |
| Horizontal scale | 1 ns/div ~ 500 s/div |
| Display | 17.8 cm (7.0") TFT 800 x 480 color |
| Connectivity | USB, LAN |
| Safety standard | CAT IV 600 V and CAT III 1000 V |
| Dimensions | 201 x 293 x 74 mmm |
| Total weight | 2.4 kg |
For more information on the specifications, see the datasheet
Software, firmware and drivers
The software, firmware and drivers of the oscilloscopes can be found at the manufacturer's website.
Accessories
The Rohde&Schwarz RTH-BNDL is supplied with:
- Power cord
- Manual
- 4x passive 500 MHz probes (RT-ZI10)
- Lithium-ion battery pack
- 4 GB microSD card (already pre-installed)
