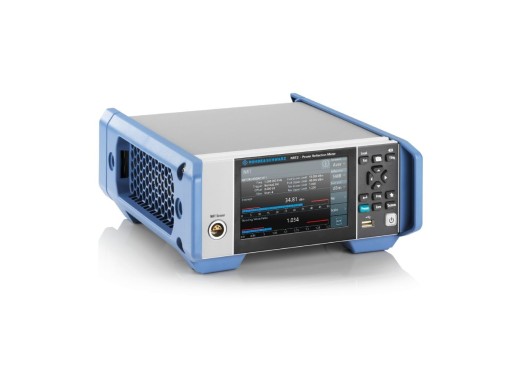

Rohde & Schwarz NRT2 power reflection meter
Details
The Rohde & Schwarz NRT2 power meter is used in combination with the Rohde & Schwarz NRTZ series directional power sensors. The NRT2 supports one Rohde & Schwarz power sensor for RF power measurements or pulse analysis, and can perform in-line power measurements. The power meter can measure various parameters, such as the continuous and burst average, timeslot, and time gate average. It can also measure calculated values, such as SWR, return loss, and reflection coefficients. The NRT2 power meter has an intuitive 5" TFT colour touchscreen display. Key functions are also colour-coded for ease of use. Measured values can be displayed both numerically and graphically based on user configuration. The NRX NRT2 meter can also be used for automatic test setups, using the USB or LAN remote interfaces.
Requires either the R&S NRT-Z14 (1GHz) or the R&S NRT-Z44 (4GHz) directional sensors which are not included!
Directional sensors
| Model | R&S NRT-Z14 | R&S NRT-Z44 |
| Frequency Range | 25 MHz – 1 GHz | 200 MHz – 4 GHz |
| Power Range | 6 mW – 120 W (300 W peak) | 3 mW – 120 W (300 W peak) |
| Price |
Specifications
| Frequency range | 25 MHz - 4 GHz (sensor dependent) |
| Power measurement range | 3 mW - 120 W (sensor dependent) |
| Interfaces | USB host/device, LAN, RJ-45 |
| Display | 5" TFT colour touchscreen (800 x 480) |
| Dimensions | 234 x 106 x 272 mm |
| Weight | 2.35 kg |
Accessories
The Rohde & Schwarz NRT2 is delivered with:
- AC power supply
- USB cable
Pros and cons
- In-line power measurements
Downloads
| R&S NRT2, Z14, Z44 datasheet |  (2.03 MB) | Download |
| R&S NRT2 user manual | (4.59 MB) | Download |
