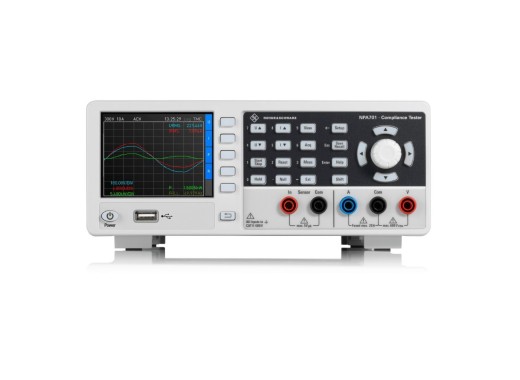

Rohde & Schwarz NPA701 power analyser

The Rohde & Schwarz NPA701 is part of the R&S NPA series of single-phase power analysers. It is designed for AC/DC load or standby current characterisation with an accuracy of 0.05% and a low current measurement of 5mA. The analyser requires no additional tools for graphical analysis and compliance testing.

It has numerical displays of 26 critical parameters with a fast update rate of 100ms and an auto-range function to enhance testing efficiency. Furthermore, the product features frequency and adaptive filters to eliminate unnecessary noise, ensuring smooth and accurate results. The display content can be saved to a USB flash drive or shared through the Ethernet and USB interfaces.

Unique to this series is the timestamped logging to CSV for a nearly unlimited period. And especially in this particular model, the evaluation functions are in line with IEC 62301, EN 50564 and EN 61000-3-2 industry standards. However, if enhanced measurement functions and graphics are not required, the R&S NPA101 is a cheaper option. And if only measurement functions are a requirement, but not the IEC and EN industry standards, the R&S NPA501 is recommended. For the full range of available functions (per model), please see the table in the images.

Specifications

Options

R&S NPA‑Z1 mains adapter	EU version. It is used for an easy and safe connection of the DUT to a R&S NPA power analyser. The DUT is powered via the appliance coupler on the top of the mains adapter.	R&S NPA‑Z1 mains adapter 270 €270.00 Excl. VAT Info Add to Cart
R&S HZC50 current probe	30 A, 4 mm connectors	R&S HZC51 current probe 665 €665.00 Excl. VAT Info Add to Cart
R&S HZC51 current probe	1000 A, 4 mm connectors	R&S HZC51 current probe 665 €665.00 Excl. VAT Info Add to Cart

Accessories

The R&S NPA701 comes by default with:

• Power cord

Downloads

R&S NPA series datasheet	(2.42 MB)	Download
R&S NPA series user manual	(6.7 MB)	Download
