Rohde & Schwarz NPA101 power analyser
Details

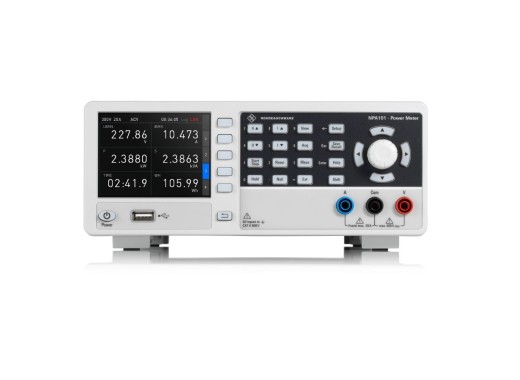

The Rohde & Schwarz NPA101 is part of the R&S NPA series of single-phase power analysers. It is designed for AC/DC load or standby current characterisation with an accuracy of 0.05% and a low current measurement of 5mA. In comparison to the other NPA models, this product only has the basic measurement functions and requires additional tools for graphical analysis and compliance testing.
It has numerical displays with a fast update rate of 100ms and an auto-range function to enhance testing efficiency. Furthermore, the product features frequency and adaptive filters to eliminate unnecessary noise, ensuring smooth and accurate results. The display content can be saved to a USB flash drive or shared through the LAN and USB interfaces.
Unique to this series is the timestamped logging to CSV for a nearly unlimited period. However, if further enhanced measurement functions and graphics are required, the R&S NPA501 is recommended. And if the evaluation functions have to be in line with IEC 62301, EN 50564 and EN 61000-3-2 industry standards, the R&S NPA701 is recommended. For the full range of available functions (per model), please see the table in the images.
Take note, some images are of the NPA701 model, but are comparable to the NPA101.Specifications
| Power measurement range | 50 μW - 12 kW |
| Bandwidth | DC to 100 kHz |
| Vertical resolution | 16 bits |
| Sample rate | 500 kSa/s |
| Measurement precision | ±0.05% |
| Measurement & Math functions | 16 |
| Display | 3.5" QVGA LCD |
| Interfaces | USB (Host/Device), LAN, digital I/O, analog, I/O |
| Dimensions | 222 x 97 x 291 mm |
| Weight | 3.25 kg |
Options
| R&S NPA‑Z1 mains adapter | EU version. It is used for an easy and safe connection of the DUT to a R&S NPA power analyser. The DUT is powered via the appliance coupler on the top of the mains adapter. | |
| R&S HZC50 current probe | 30 A, 4 mm connectors | |
| R&S HZC51 current probe | 1000 A, 4 mm connectors |
Accessories
The R&S NPA101 comes by default with:
- Power cord
Pros and cons
- Timestamped logging into CSV
- Limited measurement functions and interfaces, see NPA501
- Not compliant with IEC 62301, EN 50564 and EN 61000-3-2 standards, see NPA701
Downloads
| R&S NPA series datasheet |  (2.42 MB) | Download |
| R&S NPA series user manual | (6.7 MB) | Download |
