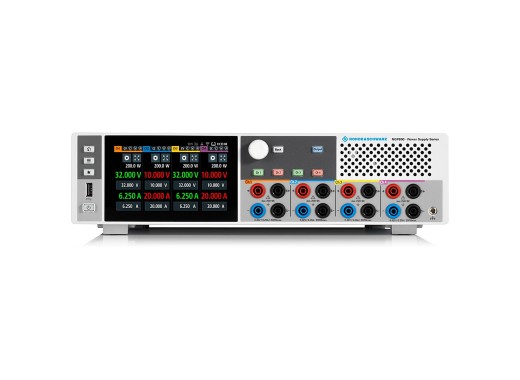

Rohde & Schwarz NGP824 power supply

The Rohde & Schwarz NGP824 is the 4CH, 800W 64V/10A power supply in the NGP800 series. It is very useful for testing up to 4 DUTs simultaneously with programmable independent floating outputs. If the application requires more power, this product can also be connected in series or parallel for higher output voltage or current ranges. It is also has easy-to-use functions for testing, including the FlexPower, EasyRamp, Output delay and QuickArb functions.

Furthermore, all this information is displayed on a 5" high-resolution color touchscreen and can be remotely controlled through either the USB or LAN connections.

Take note: this product is also available in the NGP824COMb bundle, which includes a digital trigger I/O and analog input.

Model overview

The models in the NGP800 series differ in voltage range and current range per channel:

Model	Voltage range	Current range	Price
NGP804	Each channel: 0-32 V	Each channel: 0-20 A	5000 €5,000.00 Excl. VAT
NGP814	CH1, CH2: 0-32 V CH3, CH4: 0-64 V	CH1, CH2: 0-20 A CH3, CH4: 0-10 A	5000 €5,000.00 Excl. VAT
NGP824	Each channel: 0-64 V	Each channel: 0-10 A	5000 €5,000.00 Excl. VAT

Specifications

Total power	800 W
Outputs	4
Output switch	Only ON or OFF
Resolution	All channels: 1 mV/0.5 mA
Ripple	All channels: < 3 mV/< 3.5 mA
Protection	OPP, OCP, OVP
Interfaces	USB-TMC, USB-CDC (Virtual COM), LAN
Display	5" TFT 800 × 480 touchscreen
Dimensions	362 × 100 × 451 mm
Weight	8 kg

Accessories

The NGP824 comes by default with:

• Power cord
• Terminal blocks
