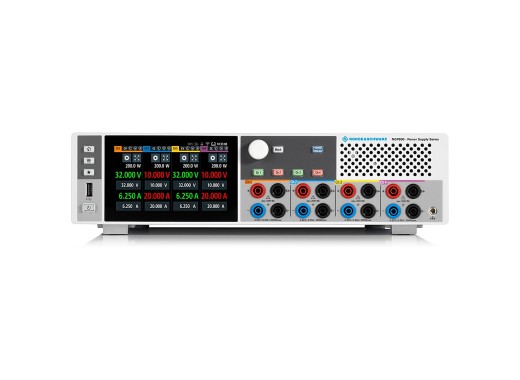

The Rohde & Schwarz NGP814 is the 4CH, 800W 32V/20A (CH1,CH2) 64V/10A (CH3,CH4) power supply in the NGP800 series. It is very useful for testing up to 4 DUTs simultaneously with programmable independent floating outputs. If the application requires more power, this product can also be connected in series or parallel for higher output voltage or current ranges. It is also has easy-to-use functions for testing, including the FlexPower, EasyRamp, Output delay and QuickArb functions.
Furthermore, all this information is displayed on a 5" high-resolution color touchscreen and can be remotely controlled through either the USB or LAN connections.
Model overview
| Model |
Channels |
Total power |
Voltage range |
Current range |
Price |
| NGP802
|
2 |
400 W |
Each channel: 0-32 V |
Each channel: 0-20 A |
3600
€3,600.00
Excl. VAT
|
| NGP822
|
2 |
400 W |
Each channel: 0-64 V |
Each channel: 0-10 A |
3600
€3,600.00
Excl. VAT
|
| NGP804
|
4 |
800 W |
Each channel: 0-32 V |
Each channel: 0-20 A |
5360
€5,360.00
Excl. VAT
|
| NGP814
|
4 |
800 W |
CH1, CH2: 0-32 V
CH3, CH4: 0-64 V |
CH1, CH2: 0-20 A
CH3, CH4: 0-10 A |
5360
€5,360.00
Excl. VAT
|
| NGP824
|
4 |
800 W |
Each channel: 0-64 V |
Each channel: 0-10 A |
5360
€5,360.00
Excl. VAT
|
Specifications
| Output switch | Only ON or OFF |
| Resolution | All channels: 1 mV/0.5 mA |
| Ripple | All channels: < 3 mV/< 3.5 mA |
| Protection | OPP, OCP, OVP |
| Interfaces | USB-TMC, USB-CDC (Virtual COM), LAN |
| Display | 5" TFT 800 × 480 touchscreen |
| Dimensions | 362 × 100 × 451 mm |
| Weight | 8 kg |
Accessories
The NGP814 comes by default with:
- Power cord
- Terminal blocks
Downloads
(9.32 MB)
