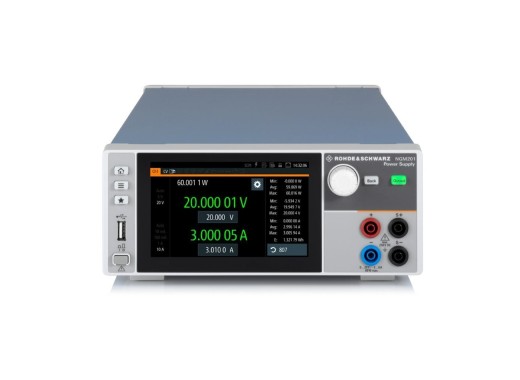

The Rohde & Schwarz NGM201 power supply is a single-channel programmable DC power supply with a total power of 60W. The channel has an output voltage of 0-20V and a maximum output current of 6A. The power supply has a high accuracy due to the extremely high resolution of down to 1µV/10nA. Because of the linear two-quadrant design, a low ripple is present.
The two-quadrant architecture will enable the power supply to function as a source and a sink to simulate batteries and loads.
The NGM201 power supply also has voltage, current, power and temperature protection (OVP, OCP, OPP, OTP).
It has a QuickArb function, with which the time/current flow or time/voltage curve can be programmed and an EasyRamp function, to simulate continuously increasing operating conditions within a given time frame.
Furthermore, all this information is displayed on a 5" 800 x 480 pixel high-resolution color touchscreen and can be remotely controlled through USB, LAN.
Model overview
| Model
| NGM201
| NGM202
|
| Total power
| 60 W |
120 W |
| Outputs
| 1 |
2 |
| Price
|
4200
€4,200.00
Excl. VAT
|
6030
€6,030.00
Excl. VAT
|
Specifications
| Voltage range | 0 - 20 V |
| Current range | ≤ 6 V output: 0 - 6 A
> 6 V output: 0 - 3 A |
| Resolution | 1 µV / 10 nA |
| Ripple | < 500 µV (RMS) / < 1 mA (RMS) |
| Protection | OPP, OCP, OVP, OTP |
| Interfaces | USB, LAN |
| Display | TFT 5" 800 x 480 pixel WVGA touch |
| Dimensions | 222 x 97 x 436 mm |
| Weight | 7.2 kg |
Pros and cons
- Extremely high resolution
- High acquisition rate
Downloads
(4.03 MB)
