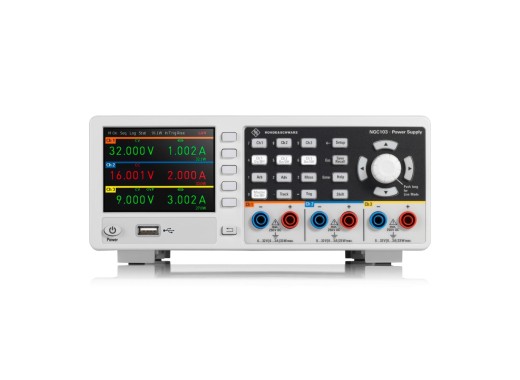

Rohde & Schwarz NGC103 power supply
Details
The Rohde & Schwarz NGC103 is a versatile power supply with 3 isolated output channels, featuring low ripple and noise. The NGC100 series can be seen as a newer version of the NGE100B series. Thanks to the high efficiency of the power supply, the device remains quiet and cool, even at maximum load. This model has a total power of 100W and has a continuous voltage range from 0-32V. Moreover, this power supply has the option to connect the channels in series or parallel to increase the voltage or current.
This device comes with several useful functions such as EasyArb, EasyRamp, analogue input for external control, external trigger inputs and arb steps. Additionally, it comes with several protective functions.
Finally, it has several additional options for controlling the device via LAN or USB. Moreover, the product is also capable of data logging. By inserting a FAT32-formatted USB drive, you can save data logs in CSV or text format.
Model overview
| Model | Outputs | Current range | Ripple | GPIB interface |
|---|---|---|---|---|
| NGC101 | 1 | 0 - 10 A | < 1 mV / < 1.5 mA | No |
| NGC101-G | 1 | 0 - 10 A | < 1 mV / < 1.5 mA | Yes |
| NGC102 | 2 | 0 - 5 A | < 450 μV / < 1 mA | No |
| NGC102-G | 2 | 0 - 5 A | < 450 μV / < 1 mA | Yes |
| NGC103 | 3 | 0 - 3 A | < 450 μV / < 1 mA | No |
| NGC103-G | 3 | 0 - 3 A | < 450 μV / < 1 mA | Yes |
Specifications
| Total power | 100 W | |
| Voltage range | 0 - 32 V | |
| Resolution | 1 mV / 0.1 mA | |
| Protection | OPP, OCP, OVP, OTP | |
| Interfaces | USB host/device, LAN, Digital IO | |
| Display | 3.5" QVGA | |
| Dimensions | 222 x 97 x 291 mm | |
| Weight | 2.6 kg |
Accessories
The NGC103 comes by default with:
- Power cord
Pros and cons
- Low residual ripple and noise
- Great software
Downloads
| R&S NGC100 series user manual |  (7.17 MB) | Download |
| R&S NGC100 series datasheet | (2.48 MB) | Download |
