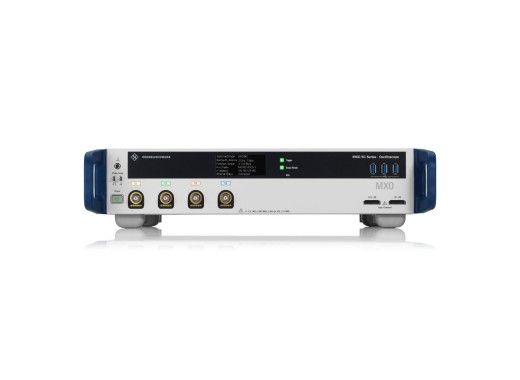

Rohde & Schwarz MXO5C-420 oscilloscope
Details
The Rohde & Schwarz MXO5C-420 is the 4-channel, 2GHz version of the MXO5C series oscilloscopes. The MXO5C series is the compact version of the MXO5 series, without the large touchscreen display. Instead, it has a 2.9" low-power e-ink display that shows key information such as connectivity status for fast setup. The 2U height also allows for the oscilloscope to be racked. Furthermore, up to 16 channels are available by stacking with an extra oscilloscope from the MXO5 or MXO5C series. This series of oscilloscopes features an extremely high waveform capture rate of 4.5 million waveforms/s. Each analog channel has a high memory depth of 500Mpts, which is high compared to other oscilloscopes, and the memory depth can also be expanded to 1Gpts. The MXO5 series has a vertical resolution of 12 bits and a vertical resolution of 18 bits for high-definition mode. The oscilloscope is very quiet, producing little cooling noise. It has a low noise floor of -160dBm/Hz and an accurate and fast trigger of < 21ns.
We can offer multiple options and accessories, please contact us for a custom quote.
Model overview
| Model | Bandwidth | Channels | Price |
|---|---|---|---|
| MXO5C-43 | 350 MHz | 4 | |
| MXO5C-45 | 500 MHz | 4 | |
| MXO5C-410 | 1 GHz | 4 | |
| MXO5C-420 | 2 GHz | 4 | |
| MXO5C-81 | 100 MHz | 8 | |
| MXO5C-82 | 200 MHz | 8 | |
| MXO5C-83 | 350 MHz | 8 | |
| MXO5C-85 | 500 MHz | 8 | |
| MXO5C-810 | 1 GHz | 8 | |
| MXO5C-820 | 2 GHz | 8 |
Specifications
| Memory depth | 500 Mpts (per channel) |
| Sample rate | 20 GS/s (divided by number of active channels) 10 GS/s (divided by number of active channels in HD mode) |
| Waveform capture rate | 4,500,000 wfm/s (divided by number of active channels) |
| Vertical resolution | 12 bits standard up to 18 bits in HD mode |
| Interfaces | USB Host, USB Device, RJ-45, HDMI, DisplayPort++ |
| Decoding options | IIC, SPI, UART/RS232, CAN, LIN |
| Display | 2.9" e-ink |
| Dimensions | 445 x 89 x 358 mm |
| Weight | 9.1 kg |
Options
| 500 MHz bandwidth upgrade (4CH only) (software) | MXO5C-B405 | |
| 1 GHz bandwidth upgrade (4CH only) (software) | MXO5C-B410 | |
| 2 GHz bandwidth upgrade (4CH only) (software) | MXO5C-B420 | |
| 200 MHz bandwidth upgrade (8CH only) (software) | MXO5C-B802 | |
| 350 MHz bandwidth upgrade (8CH only) (software) | MXO5C-B803 | |
| 500 MHz bandwidth upgrade (8CH only) (software) | MXO5C-B805 | |
| 1 GHz bandwidth upgrade (8CH only) (software) | MXO5C-B810 | |
| 2 GHz bandwidth upgrade (8CH only) (software) | MXO5C-B820 | |
| Mixed signal option with 2x RT-ZL04 logic probes (hardware & software) | MXO5C-B1 | |
| Function generator (software) | MXO5C-B6 | |
| 1 Gpts memory upgrade (software) | MXO5C-B110 | |
| Power analysis (software) | MXO5C-K31 | |
| Frequency response analysis (software) | MXO5C-K36 | |
| I2C/SPI/UART/RS serial trigger and decoding (software) | MXO5C-K510 | |
| CAN/CAN-FD/CAN-XL/LIN/SENT serial trigger and decoding (software) | MXO5C-K520 | |
| ARINC429/MIL-STD-1553/SpaceWire serial trigger and decoding (software) | MXO5C-K530 | |
| SPMI/REFE/I3C serial trigger and decoding (software) | MXO5C-K550 | |
| 10BASE-T1S and 100BASE-T1 serial trigger and decoding (software) | MXO5C-K560 | |
| Application bundle (software) | MXO5C-PK1 |
Accessories
The MXO5C series comes with:- 1x power cord
- 1x 700 MHz passive probe (10:1) per channel
- 1x accessory bag
Downloads
| R&S MXO5C - Datasheet |  (1012.79 KB) | Download |
| R&S MXO5C - User manual | (30.69 MB) | Download |
