Rohde & Schwarz MXO44-2415 oscilloscope
Details

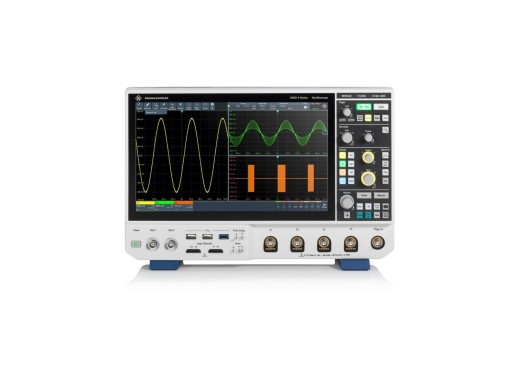

The MXO44-2415 is the 1.5 GHz version of the MXO44 series oscilloscopes. This series of oscilloscopes features an extremely high waveform capture rate of 4.5 million waveforms/s. This, combined with the 12-bit ADC (18-bit in HD mode), ensures that many small infrequent events can be observed better than with many other oscilloscopes. Furthermore, this series features a big 400 Mpoints memory depth, which allows recording for long periods of time. In addition to this, these oscilloscopes also feature an FFT function with a spectrum acquisition rate of 45000 FFT/s and a highly sensitive trigger function with low trigger jitter.
The MXO44 series features a 13.3" full HD capacitive touchscreen display with an intuitive user interface that includes, for example, a function search menu and remote control access over LAN. Furthermore, the MXO44 series features a VESA mount with which the oscilloscopes can be mounted.
Bundle overview
MXO4-BNDL has been replaced by the MXO4-Basic, Pro en Ultimate| Model | MXO44-BASC | MXO44-PRO | MXO44-ULTM |
|---|---|---|---|
| Bandwidth | 200 MHz | 500 MHz | 1.5 GHz |
| Rise time | 1.75 ns | 700 ps | 234 ps |
| Extra features | waveform generator | waveform generator, frequency response analyzer, power analysis package, trigger & decoding | waveform generator, frequency response analyzer, power analysis package, trigger & decoding, additional memory, logic probes with MSO option. |
| Price |
Model overview
| Model | MXO44-242 | MXO44-243 | MXO44-245 | MXO44-2410 | MXO44-2415 |
|---|---|---|---|---|---|
| Bandwidth | 200 MHz | 350 MHz | 500 MHz | 1 GHz | 1.5 GHz |
| Rise time | 1.75 ns | 1 ns | 700 ps | 350 ps | 234 ps |
| Price |
Specifications
| Channels | 4 |
| Memory depth | 400 Mpts (per channel) |
| Sample rate | 5 GS/s (on 2 channels, 2.5 GS/s on 4 channels) |
| Waveform capture rate | 4500000 wfm/s |
| Vertical resolution | 12 bits (18 bits in HD mode) |
| Vertical scale | 0.5 mV/div - 1 V/div |
| Horizontal scale | 200 ps/div - 10000 s/div |
| Interfaces | USB Host, USB Device, LAN, HDMI |
| Display | 13.3" TFT LCD (1920x1080, Touch-screen) |
| Dimensions | 414 × 279 × 162 |
| Weight | 6 kg |
Options
| 19" rackmount adapter (hardware) | ZZA-MXO4 | |
| Front cover (hardware) | MXO4-Z1 | |
| Transport case (hardware) | MXO4-Z3 | |
| Transit case with trolley (hardware) | MXO4-Z4 | |
| 16 channels mixed signal (hardware) | MXO4-B1 | |
| 800 Mpoints memory upgrade (software) | MXO4-B108 | |
| 350 MHz bandwidth upgrade (software) | MXO4-B243 | |
| 500 MHz bandwidth upgrade (software) | MXO4-B245 | |
| 1 GHz bandwidth upgrade (software) | MXO4-B2410 | |
| 1.5 GHz bandwidth upgrade (software) | MXO4-B2415 | |
| Function generator (software) | MXO4-B6 | |
| Frequency response analysis (software) | MXO4-K36 | |
| Low speed triggering and decoding (I2C, SPI, UART/RS-232/RS-422/RS-485, Quad-SPI) (software) | MXO4-K510 | |
| Automotive triggering and decoding (CAN, CAN-FD, CAN-XL, LIN) (software) | MXO4-K520 | |
| Aerospace triggering and decoding (ARINC-429, MIL-STD-1553) (software) | MXO4-K530 | |
| Serial triggering and decoding (SPMI) (software) | MXO4-K550 | |
| 10BASE-T1S triggering and decoding (software) | MXO4-K560 |
Accessories
The MXO44 series comes by default with:
- 4x passive probe
- Power cord
Pros and cons
- High 12 bits resolution
- Big 400 Mpts memory
- 13.3" touchscreen
Downloads
| MXO44 series datasheet |  (374.67 KB) | Download |
| MXO4 series user manual | (28.31 MB) | Download |
