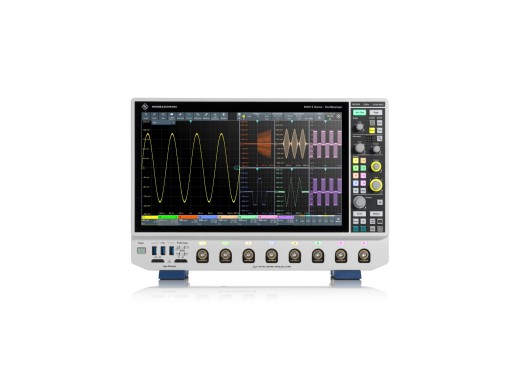

Rohde & Schwarz MXO58-BNDL oscilloscope
Promotion! This product is temporarily reduced in price until September 30th 2026!
Details
The MXO58 is a series of oscilloscopes that features 8 channels and an extremely high waveform capture rate of 4,500,000wfm/s. Each analog channel has a high memory depth of 1Gpts, which is high compared to other oscilloscopes, and the memory depth can also be expanded to 1Gpts. The MXO58 series has a vertical resolution of 12 bits and a vertical resolution of 18 bits for high-definition mode. The oscilloscope is very quiet, producing little cooling noise. It has a low noise floor of -160dBm/Hz and an accurate and fast trigger of < 21ns. The MXO58 series oscilloscopes feature a 15.6" full HD TFT display with a capacitive touchscreen and an intuitive user interface, which includes, for example, a function search menu and remote control access over LAN. Furthermore, the MXO58 series features a VESA mount with which the oscilloscopes can be mounted.
MXO58-BNDL
This bundle features the following:
- MXO58-100 oscilloscope
- MXO5-B2620 2 Ghz bandwidth option
- MXO5-K510 Low speed serial buses
- MXO5-K520 Automotive protocols
- MXO5-K560 Automotive ethernet buses
- MXO5-K31 Power analysis
- MXO5-K36 Frequency response analysis
- MXO5-K550 MIPI low speed protocols
- MXO5-K530 Aerospace protocols
- MXO5-K500 Bus analysis
- MXO5-B6 ARB Generator
- MXO5-B110 Memory option 1Gpts
Specifications
| Channels | 8 |
| Bandwidth | 2 GHz |
| Memory depth | 1 Gpts |
| Sample rate | 5 GS/s |
| Waveform capture rate | 4,500,000 wfm/s |
| Vertical resolution | 12 bits (18 bits in HD mode) |
| Vertical scale | 0.5 mV/div - 1 V/div |
| Horizontal scale | 200 ps/div - 10000 s/div |
| Interfaces | USB Host, USB Device, LAN, HDMI |
| Decoding options | IIC, SPI, UART/RS232, CAN, LIN |
| Display | 15.6" TFT LCD (1920x1080, Touch-screen) |
| Dimensions | 445 × 314 × 153 |
| Weight | 9 kg |
Options
There are a lot of options available for this product. Please, see the datasheet for a list of all optionsAccessories
The MXO58 series comes by default with:
- 8 x 700 MHz passive probe
- 1 x Power cord
Downloads
| Rohde & Schwartz MXO5 user manual |  (23.76 MB) | Download |
| Rohde & Schwartz MXO5 datasheet | (19.21 MB) | Download |
