Rohde & Schwarz MXO58-350 oscilloscope
Promotion! This product is temporarily reduced in price until November 30th 2026!
Details
The Rohde & Schwarz MXO58-350 is the 8 channel 350 MHz version of the MXO5 series oscilloscopes. This series of oscilloscopes features an extremely high waveform capture rate of 4.5 million waveforms/s. Each analog channel has a high memory depth of 500 Mpts, which is high compared to other oscilloscopes, and the memory depth can also be expanded to 1 Gpts. The MXO5 series has a vertical resolution of 12 bits and a vertical resolution of 18 bits for high-definition mode. The oscilloscope is very quiet, producing little cooling noise. It has a low noise floor of -160dBm/Hz and an accurate and fast trigger of < 21ns.
The MXO5 series oscilloscopes feature a 15.6" full HD TFT display with a capacitive touchscreen.

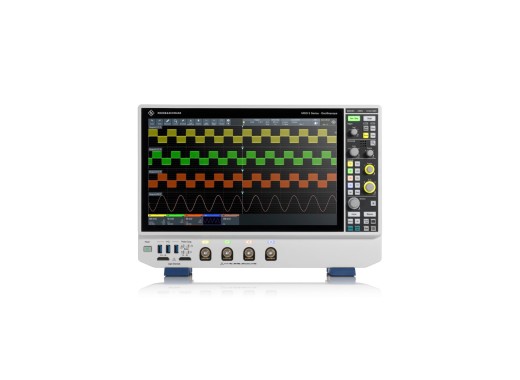

Please note that the images displayed feature the MX054-2000, a specific model from the MXO5 series, which offers a 2 GHz bandwidth and includes 4 analog channels.
Bundle overview
| Model | MXO58-BASC | MXO58-PRO | MXO58-ULTM |
|---|---|---|---|
| Bandwidth | 100 MHz | 500 MHz | 2 GHz |
| Memory depth | 500 Mpts | 500 Mpts | 1 Gpts |
| Extra features | waveform generator | waveform generator, frequency response analyser, power analysis package, trigger & decoding | waveform generator, frequency response analyser, power analysis package, trigger & decoding, additional memory, logic probes with MSO option. |
| Price |
Model overview
Rohde & Schwarz offers 10 models in the MXO5 series, differing in bandwidth and the number of channels:| Model | Bandwidth | Channels | Price |
|---|---|---|---|
| MXO54-350 | 350 MHz | 4 | |
| MXO54-500 | 500 MHz | 4 | |
| MXO54-1000 | 1 GHz | 4 | |
| MXO54-2000 | 2 GHz | 4 | |
| MXO58-100 | 100 MHz | 8 | |
| MXO58-200 | 200 MHz | 8 | |
| MXO58-350 | 350 MHz | 8 | |
| MXO58-500 | 500 MHz | 8 | |
| MXO58-1000 | 1 GHz | 8 | |
| MXO58-2000 | 2 GHz | 8 |
Specifications
| Memory depth | 500 Mpts (per channel) |
| Sample rate | 20 GS/s (divided by number of active channels) 10 GS/s (divided by number of active channels in HD mode) |
| Waveform capture rate | 4.500.000 wfm/s (divided by number of active channels) |
| Vertical resolution | 12 bits standard up to 18 bits in HD mode |
| Interfaces | USB Host, USB Device, RJ-45, HDMI |
| Decoding options | IIC, SPI, UART/RS232, CAN, LIN |
| Display | 15.6"" TFT LCD (1920x1080) |
| Dimensions | 445 x 314x 153 mm |
| Weight | 9.0 kg |
Options
| 16 channels mixed signal (hardware) | MXO5-B1 | |
| 1 Gpts memory upgrade (software) | MXO5-B110 | |
| 500 MHz bandwidth upgrade (MXO54 only) (software) | MXO5-B245 | |
| 1 GHz bandwidth upgrade (MXO54 only) (software) | MXO5-B2410 | |
| 2 GHz bandwidth upgrade (MXO54 only) (software) | MXO5-B2420 | |
| 200 MHz bandwidth upgrade (MXO58 only) (software) | MXO5-B282 | |
| 350 MHz bandwidth upgrade (MXO58 only) (software) | MXO5-B283 | |
| 500 MHz bandwidth upgrade (MXO58 only) (software) | MXO5-B285 | |
| 1 GHz bandwidth upgrade (MXO58 only) (software) | MXO5-B2810 | |
| 2 GHz bandwidth upgrade (MXO58 only) (software) | MXO5-B2820 | |
| Function generator (software) | MXO5-B6 | |
| Power analysis (software) | MXO5-K31 | |
| Frequency & impedance analysis (requires MXO5-B6) (software) | MXO5-K36 | |
| Low speed triggering and decoding (I2C, SPI, UART/RS-232/RS-422/RS-485, Quad-SPI) (software) | MXO5-K510 | |
| Aerospace triggering and decoding (ARINC-429, MIL-STD-1553) (software) | MXO5-K530 | |
| Serial triggering and decoding (SPMI) (software) | MXO5-K550 | |
| IEEE triggering and decoding (10BASE-T1S, 100BASE-T1) (software) | MXO5-K560 |
Accessories
The MXO5 series comes with:- 1x power cord
- 1x 700 MHz passive probe (10:1) per channel
Pros and cons
- Résolution verticale jusqu'à 18 bits
- Grande mémoire de 500 Mpts
- Écran tactile de 15,6 pouces
Downloads
| Rohde & Schwartz MXO5 user manual |  (23.76 MB) | Download |
| Rohde & Schwartz MXO5 datasheet | (19.21 MB) | Download |
| Rohde & Schwartz MXO5 specifications | (1.08 MB) | Download |
