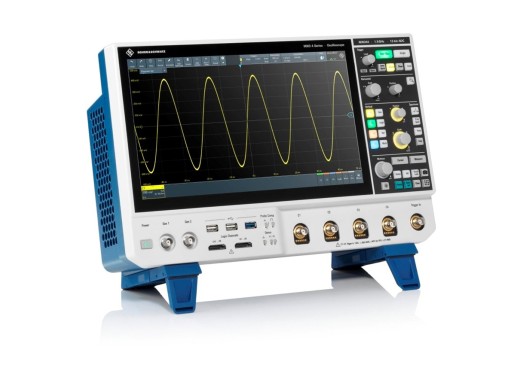

Rohde & Schwarz MXO44-BNDL oscilloscope
Details
The MXO44 series of oscilloscopes features an extremely high waveform capture rate of 4,500,000wfm/s. This, combined with the 12-bit ADC (18-bit in HD mode), ensures that many small infrequent events can be observed better than with many other oscilloscopes. Furthermore, this series features a large 800Mpts memory depth, which allows recording for long periods of time. In addition to this, these oscilloscopes also feature an FFT function with a spectrum acquisition rate of 45000FFT/s and a highly sensitive trigger function with low trigger jitter. The MXO44 series features a 13.3" full HD capacitive touchscreen display with an intuitive user interface, which includes, for example, a function search menu and remote control access over LAN. Furthermore, the MXO44 series features a VESA mount with which the oscilloscopes can be mounted.
MXO44-BNDL
This bundle features the following:
- MXO44-242 oscilloscope
- MXO4-B2415 1.5 GHz bandwidth option
- MXO4-K510 Low speed serial buses
- MXO4-K520 Automotive protocols
- MXO4-K560 Automotive ethernet bus
- MXO4-K31 Power analysis
- MXO4-K36 Frequency response analysis
- MXO4-K550 MIPI low speed protocols
- MXO4-K530 Aerospace protocols
- MXO4-K500 Bus analysis
- MXO4-K12 Basic Jitter
- MXO4-B6 ARB Generator
- MXO4-B108 Memory option 800 Mpts
Specifications
| Channels | 4 |
| Bandwidth | 1.5 GHz |
| Sample rate | 5 GS/s (on 2 channels, 2.5 GS/s on 4 channels) |
| Memory depth | 800 Mpts |
| Waveform capture rate | 4,500,000 wfm/s |
| Vertical resolution | 12 bits (18 bits in HD mode) |
| Vertical scale | 0.5 mV/div - 1 V/div |
| Horizontal scale | 200 ps/div - 10000 s/div |
| Interfaces | USB Host, USB Device, LAN, HDMI |
| Display | 13.3" TFT LCD (1920x1080, Touch-screen) |
| Dimensions | 414 × 279 × 162 |
| Weight | 6 kg |
Options
There are a lot of options available for this product. Please, see the datasheet for a list of all optionsAccessories
The MXO44 series comes by default with:
- 4x passive probe
- Power cord
Downloads
| MXO44 series datasheet |  (374.67 KB) | Download |
| MXO4 series user manual | (28.31 MB) | Download |
