The Rohde & Schwarz LCX-Z1 is an option for the Rohde & Schwarz LCX100 LCR meter
and Rohde & Schwarz LCX200COM

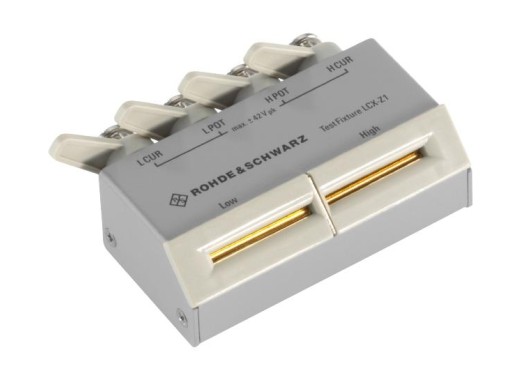

. The LCX-Z1 is used to connect axial and radial lead type devices to the LCX100 and LCX200 LCR meters respectively. The LCX-Z1 has two spring-loaded insertion slots where the axial and radial leads can be inserted. A shorting plate is included for short-circuit correction. Measurable devices include: resistors, coils, capacitors and connecting wires.
Specifications
| Frequency range | DC to 10 Mhz |
| DC bias | 0 V to 40 V |
| Weight | 200 g |
