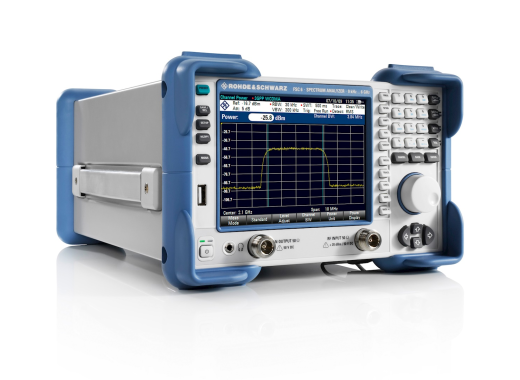

Rohde & Schwarz FSC6 spectrum analyser
Details
The Rohde & Schwarz FSC6 spectrum analyser is part of the FSC series of benchtop spectrum analysers. The spectrum analyser has a bandwidth of 9kHz to 6GHz and a frequency resolution of 1Hz. The FSC6 can be used as a frequency counter, a noise marker, to determine DUT compliance, and has many other functions. The high measuring accuracy of the instrument ensures precise and reliable test results. Another unique feature of this series is the low measurement uncertainty of 1dB. It also features in-built presets for spectrum analysis such as harmonics, AM modulation depth and ACLR. It features a 5.7" TFT LCD. Weighing only 4.5kg and with a width of 23cm, the FSC6 is compact and takes up little space in lab environments while still featuring a 5.7" TFT LCD. Finally, the FSC6 can be connected to a PC via USB/LAN to transfer data.
We also offer the Rohde & Schwarz FSC-B22 preamplifier option for the FSC6 spectrum analyser.
Model overview
| Models | FSC3 | FSC3-TG | FSC6 | FSC6-TG |
|---|---|---|---|---|
| Bandwidth | 9 kHz - 3 GHz | 9 kHz - 3 GHz | 9 kHz - 6 GHz | 9 kHz - 6 GHz |
| Tracking generator | No | Yes | No | Yes |
| Price |
Specifications
| RBW | 10 Hz - 3 MHz |
| DANL | < - 146 dBm/Hz |
| Amplitude accuracy | < 1 dB |
| Phase noise | < - 120dB/Hz |
| Detectors | Sample, Max. peak / Min. peak, auto peak, RMS |
| Interfaces | USB host/device, LAN |
| Display | 5.7" TFT LCD (640x480) |
| Dimensions | 233 x 158.1 x 350 mm |
| Weight | 4.5 kg |
Accessories
The Rohde & Schwarz FSC6 is delivered with:
- Power cable
- USB cable
Downloads
| R&S FSC - User manual |  (4.02 MB) | Download |
| R&S FSC - Specifications | (1.12 MB) | Download |
