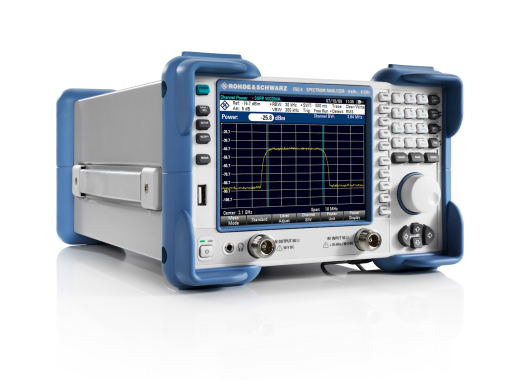

Rohde & Schwarz FSC3 spectrum analyser
Details
The Rohde & Schwarz FSC3 spectrum analyser is part of the FSC series of benchtop spectrum analysers. The spectrum analyser has a bandwidth of 9kHz to 3GHz and a frequency resolution of 1Hz. The FSC3 can be used as a frequency counter, a noise marker, to determine DUT compliance, and has many other functions. Another unique feature of this series is the low measurement uncertainty of 1dB. The high measuring accuracy of the instrument ensures precise and reliable test results. It also features in-built presets for spectrum analysis such as harmonics, AM modulation depth and ACLR. Weighing only 4.5kg and with a width of 23cm, the FSC3 is compact and takes up little space in lab environments while still featuring a 5.7" TFT LCD. Finally, the FSC3 can be connected to a PC via USB/LAN to transfer data.
We also offer the Rohde & Schwarz FSC-B22 preamplifier option for the FSC3 spectrum analyser.
Model overview
| Models | FSC3 | FSC3-TG | FSC6 | FSC6-TG |
|---|---|---|---|---|
| Bandwidth | 9 kHz - 3 GHz | 9 kHz - 3 GHz | 9 kHz - 6 GHz | 9 kHz - 6 GHz |
| Tracking generator | No | Yes | No | Yes |
| Price |
Specifications
| RBW | 10 Hz - 3 MHz |
| DANL | < - 146 dBm/Hz |
| Amplitude accuracy | < 1 dB |
| Phase noise | < - 120dB/Hz |
| Detectors | Sample, Max. peak / Min. peak, auto peak, RMS |
| Interfaces | USB host/device, LAN |
| Display | 5.7" TFT LCD (640x480) |
| Dimensions | 233 x 158.1 x 350 mm |
| Weight | 4.5 kg |
Accessories
The Rohde & Schwarz FSC3 is delivered with:
- Power cable
- USB cable
Downloads
| R&S FSC - User manual |  (4.02 MB) | Download |
| R&S FSC - Specifications | (1.12 MB) | Download |
