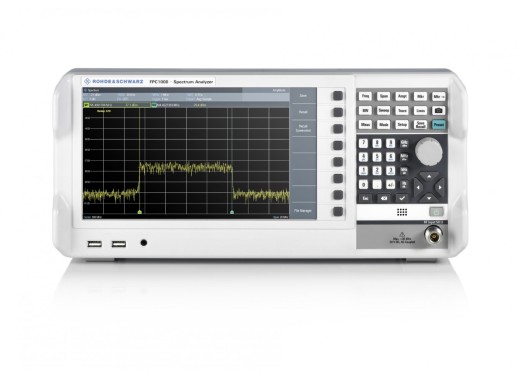

Rohde & Schwarz FPC-EMI1 promotion
Details
The FPC-EMI1 is a promotional package which consists out of the R&S FPC1000 spectrum analyser with the following options included:
- FPC-B22 preamplifier setting
- FPC-K43 EMI receiver mode
- FPC-Z1 cable for the R&S HM6050-2 two-line impedance stabilisation network
If you need a specific configuration please visit the FPC1000 product page or contact us and we will arrange the product in the desired configuration.
Included options
The B22 option increases the preamplifier sensitivity to a typical level of -165 dBm. Most entry level SAs measure up to +20 dBm, while the FPC can handle signals of up to +30 dBm (1 W). This allows for a very wide dynamic measurement range.
Commonly used in combination with the B22 is the K43 option. It allows EMI debugging, the ability to record two traces and to display a log-scale of the frequency axis. Paired with the B22 option this makes a great match for measuring and analysing small interfering signals.
The Rohde & Schwarz FPC1000 is a 1 GHz spectrum analyser that has a good price quality ratio. This spectrum analyser has a large 10.1" LCD screen and is equipped with advanced measurement functions. Furthermore, the FPC1000 can be connected to a PC via USB and LAN connections. Of course it is also possible to store measurement data using a USB stick.
Specifications
| Display | 10.1" LCD, 1366 x 768 pixels |
| Frequency | 5 KHz - 1 GHz (up to 3 GHz option) |
| Resolution | 1 Hz |
| Noise level | Up to -150 dBm/Hz, with pre-amplifier (Option B22) to -165 dBm/Hz | .
| Third-order intercept (IP3) | +7 dBm |
| Maximum input voltage | 50V DC |
| Amplitude display |
Log: 1 dB - 100 dB, 10 divisions Linear: 0 - 100 %, 10 divisions |
| Connections | USB type A, USB type B, Lan (10/100BASE-T, RJ-45) |
| Weight | 3 kg |
| Dimensions | 396 x 185 x 156 mm |
Accessories
The Rohde & Schwarz FPC1000 spectrum analyser is supplied with:
- Power cord
- USB cable for PC connection
