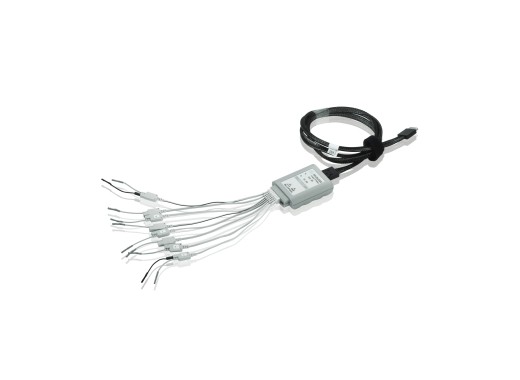

The RT-ZL03X is a premium 8-channel logic probe from Rohde & Schwarz is built exclusively for the R&S MXO3 series, adding mixed-signal capability through the OCuLink interface. Two independent threshold groups (D0-D3 and D4-D7) let you mix logic families on a single probe, while the 4pF input loading keeps fast edges intact. Furthermore, a pair of these probes forms the basis of the Rohde & Schwarz MXO3-B1 16 digital channels option, which brings the MXO3's digital input count to 16 channels for analysing serial buses such as SPI and I2C.
Specifications
| Bandwidth |
300 MHz |
| Input impedance |
100 kΩ ∥ 4 pF |
| Threshold range |
±8 V (2 groups) |
| Maximum input voltage |
±40 V peak / 32 V RMS |
| Weight |
100 g |
Accessories
- 8x Tip cables
- 8x Mini clips
- 8x 6cm ground leads
- 2x 10cm ground leads
- 1x Number sticker sheet
Pros and cons
- Very low 4pF input loading
Downloads
(1 MB)
