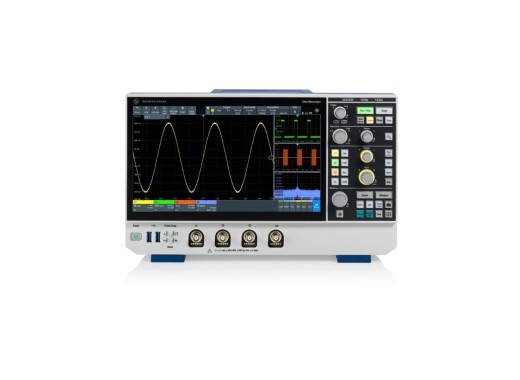

Rohde & Schwarz MXO34-BNDL oscilloscope bundle
Promotion! This product is temporarily reduced in price until September 30th 2026!
Details
The MXO34-BNDL oscilloscope bundle contains the 100MHz version of the MXO3 series oscilloscopes, combined with all available SW options, such as the 1GHz bandwidth upgrade, as well as the arbitrary waveform generator, and memory upgrades. For an overview of all the included options in this bundle, see the accessories list down below.
This series of oscilloscopes features an extremely high waveform capture rate of 4.5 million wfm/s. This, combined with the 12-bit ADC (18-bit in HD mode), ensures that many small infrequent events can be observed. Furthermore, this series features a 125Mpts memory depth (500Mpts option included), which allows recording for long periods of time. Moreover, these oscilloscopes also feature an FFT function with a spectrum acquisition rate of 50,000FFT/s and a highly sensitive trigger function with low trigger jitter.
The MXO34-100 series features an 11.6" full HD capacitive touchscreen display with an intuitive user interface that includes, for example, a function search menu and remote control access over LAN.
Model overview
| Model | MXO34-BNDL | MXO38-BNDL | |
|---|---|---|---|
| Channels | 4 | 8 | |
| Price |
Specifications
| Memory depth | 500 Mpts (per channel) |
| Sample rate | 5 GS/s (on 2 channels, 2.5 GS/s on 4 channels) |
| Waveform capture rate | 4,500,000 wfm/s |
| Vertical resolution | 12 bits (18 bits in HD mode) |
| Vertical scale | 0.5 mV/div - 1 V/div |
| Horizontal scale | 200 ps/div - 10,000 s/div |
| Interfaces | USB Host, USB Device, LAN, HDMI |
| Display | 11.6" TFT LCD (1920x1080, Touch-screen) |
| Dimensions | 375 × 233 × 163 mm |
| Weight | 4 kg |
Accessories
The MXO34-BNDL bundle comes by default with:
- 4x Passive probe
- Power cord
- 1 GHz Bandwidth option (MXO3-B2810)
- Bus Analysis (MXO3-K500)
- Low speed serial buses (MXO3-K510)
- Automotive protocols (MXO3-K520)
- Aerospace protocols (MXO3-K530)
- MIPI low speed protocols (MXO3-K550)
- Automotive Ethernet bus (MXO3-K560)
- USB protocols (MXO3-K570)
- Basic Jitter (MXO3-K12)
- Power analysis (MXO3-K31)
- Frequency response analysis (MXO3-K36)
- ARB Generator (MXO3-B6)
- Memory option 500 Mpts (MXO3-B105)
Downloads
| Rohde & Schwarz MXO34/8 datasheet |  (13.72 MB) | Download |
