Free options! The RSA3015N now includes a free Pre-amplifier and EMI option. This promotion is valid until June 30th 2024.

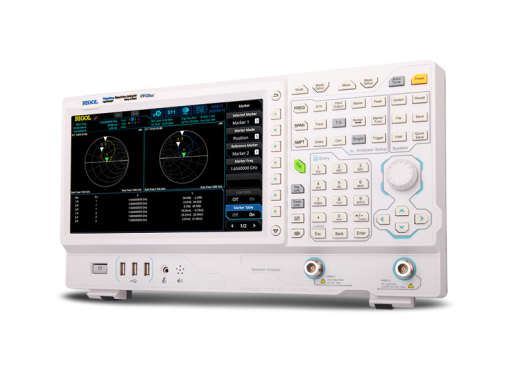

The Rigol RSA3015N is a real-time spectrum and vector network analyser in the RSA3000N series. It comes with a bandwidth of 1.5 GHz and a Tracking Generator, which makes it a very complete device.
A real-time spectrum analyser uses the Fast
Fourier Transform to convert the signal from the time domain to the frequency domain. This ensures that
short and fast signals are better captured. In addition to the real-time mode, these analysers also have the 'sweep' mode, which allows you to
in 1 ms a complete analysis of the signal can be done.
Due to the low Displayed Average Noise Level of these analysers, low-power signals such as harmonics and sources of interference are
well displayed and easy to troubleshoot. It is also easy, due to the low minimum resolution bandwidth of 1 Hz,
to keep signals with frequencies close to each other apart. Furthermore, there are 7 real-time visualization modes
and the analysers have powerful trigger capabilities.
The analysers in this series feature a large 10.1" multi-touch screen for easy operation. In addition
it is also possible to connect a keyboard, mouse, monitor or PC and use it to operate the analysers.
These models have a Tracking Generator which allows for example cables, antennas, filters and active
components can be tested.
The models within the RSA3000N series only differ from each other in frequency range. Are you looking for a model without VNA? Then take a look at the RSA3030.
Model | RSA3015N | RSA3030N | RSA3045N |
---|---|---|---|
SA bandwidth | 9 kHz - 1.5 GHz | 9 kHz - 3 GHz | 9 kHz - 4.5 GHz |
VNA bandwidth | 100 kHz - 1.5 GHz | 100 kHz - 3 GHz | 100 kHz - 4.5 GHz |
Tracking generator | Yes | ||
Price |
Resolution | 1 Hz (option) |
Internal reference frequency | 10 MHz |
Maximum input voltage | 50 V |
Real-time analysis bandwidth | 10 MHz (Option for 25 or 40 MHz) |
Maximum input power | 25 mm |
DANL | ≤-161 dBm |
Phase noise | ≤-102 dBc/Hz |
Amplitude display | Log: 1 - 200 dB Linear: 0 - reference |
Min. RBW | 1 Hz |
Third order intercept | +15 dBm |
Interfaces | USB host, USB device, LAN, HDMI |
Display | 10.1" touchscreen (1024x600) |
Weight | 4.95 kg |
Dimensions | 410 x 224 x 135 mm |
Model | RSA3015N | RSA3030N | RSA3045N |
---|---|---|---|
Frequency range | 100 kHz - 1.5 GHz | 100 kHz - 3 GHz | 100 kHz - 4.5 GHz |
Output level range | -40 - 0 dBm | ||
Output level resolution | 1 dB |
For more information and specifications you can find the datasheet of the RSA3000 series at the bottom of this page.
RSA-EMI measurement application | This EMI software package for the RSA3000 and RSA5000 series is a complete EMI pre-compliance solution with preset scans, peaks, limits and multiple CISPR detectors. | |
RSA-PA preamplifier | This option activates the front-end preamplifier of the RSA3000 series. | |
Near Field Probe kit | This Near Field Probe kit (NFP) from Rigol is designed for EMC diagnosis in the frequency range of 30 MHz to 3 GHz. Suitable for all Rigol spectrum analysers. | |
CK106E | This mechanical calibration set is designed for the VNA of the RSA3000N/5000N spectrum analysers up to 1.5 GHz. | |
RSA-BW1 | This software license increases the RBW of the Rigol RSA3000N spectrum analysers to 1 Hz to 10 MHz. | |
RSA-B25 | This software license increases the Real time bandwidth of the Rigol RSA3000N spectrum analysers from 10 MHz to 25 MHz. | |
RSA-B40 | This software license increases the Real time bandwidth of the Rigol RSA3000N spectrum analysers from 10 MHz to 40 MHz. |
