3955

Regular Price: €4,912.00

Now: €3,955.00 Excl. VAT

Loading stock info
  •
Product number: ELE004257

Be the first to review this product

Free options and discount! The RSA3030N now includes a free pre-amplifier and EMI option, and comes at a discounted price. This promotion is valid until March 31st 2024.

Details

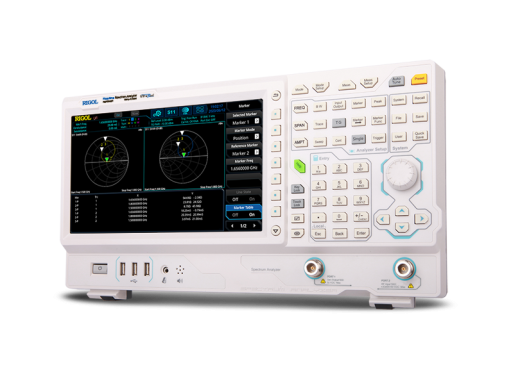

The Rigol RSA3030N is a real-time spectrum and vector network analyser in the RSA3000N series. It comes with a bandwidth of 3 GHz and a Tracking Generator, which makes it a very complete device.
A real-time spectrum analyser uses the Fast Fourier Transform to convert the signal from the time domain to the frequency domain. This ensures that short and fast signals are better captured. In addition to the real-time mode, these analysers also have the 'sweep' mode, which allows you to in 1 ms a complete analysis of the signal can be done.
Due to the low Displayed Average Noise Level of these analysers, low-power signals such as harmonics and sources of interference are well displayed and easy to troubleshoot. It is also easy, due to the low minimum resolution bandwidth of 1 Hz, to keep signals with frequencies close to each other apart. Furthermore, there are 7 real-time visualization modes and the analysers have powerful trigger capabilities. The analysers in this series feature a large 10.1" multi-touch screen for easy operation. In addition it is also possible to connect a keyboard, mouse, monitor or PC and use it to operate the analysers.
These models have a Tracking Generator which allows for example cables, antennas, filters and active components can be tested.

Models

The models within the RSA3000N series only differ from each other in frequency range. Are you looking for a model without VNA? Then take a look at the RSA3030.

ModelRSA3015NRSA3030NRSA3045N
SA bandwidth 9 kHz - 1.5 GHz 9 kHz - 3 GHz 9 kHz - 4.5 GHz
VNA bandwidth 100 kHz - 1.5 GHz 100 kHz - 3 GHz 100 kHz - 4.5 GHz
Tracking generator Yes
Price 2099 €2,099.00 Excl. VAT 3955 Regular Price: €4,912.00 Now: €3,955.00 Excl. VAT 5195 Regular Price: €6,093.00 Now: €5,195.00 Excl. VAT

Specifications

Resolution1 Hz (optie)
Internal reference frequency10 MHz
Maximum input voltage50 V
Real-time analysis bandwidth10 MHz (Option for 25 or 40 MHz)
Maximum input power25 mm
DANL ≤-161 dBm
Phase noise≤-102 dBc/Hz
Amplitude display Log: 1 - 200 dB
Linear: 0 - reference
Min. RBW 1 Hz
Third order intercept+15 dBm
Interfaces USB host, USB device, LAN, HDMI
Display10.1" touchscreen (1024x600)
Weight4.95 kg
Dimensions 410 x 224 x 135 mm

Tracking generator specifications

ModelRSA3015NRSA3030NRSA3045N
Frequency range 100 kHz - 1.5 GHz 100 kHz - 3 GHz 100 kHz - 4.5 GHz
Output level range -40 - 0 dBm
Output level resolution 1 dB

For more information and specifications you can find the datasheet of the RSA3000 series at the bottom of this page.

Options

RSA-EMI measurement application This EMI software package for the RSA3000 and RSA5000 series is a complete EMI pre-compliance solution with preset scans, peaks, limits and multiple CISPR detectors.

RSA-EMI

RSA3000/-5000 EMI software package
895 €895.00 Excl. VAT
Info
RSA-PA preamplifier This option activates the front-end preamplifier of the RSA3000 series.

RSA-PA

RSA3000 pre-amplifier option
225 €225.00 Excl. VAT
Info
Near Field Probe kit This Near Field Probe kit (NFP) from Rigol is designed for EMC diagnosis in the frequency range of 30 MHz to 3 GHz. Suitable for all Rigol spectrum analysers.

NFP-3

Rigol NFP-3 Near Field Probe kit
461.03 €461.03 Excl. VAT
Info
CK106A This mechanical calibration set is designed for the VNA of the RSA3000N/5000N spectrum analysers up to 6.5 GHz.

CK106A

Rigol CK106A mechanical calibration set 6.5 GHz
909 €909.00 Excl. VAT
Info
CK106E This mechanical calibration set is designed for the VNA of the RSA3000N/5000N spectrum analysers up to 1.5 GHz.

CK106E

Rigol CK106E mechanical calibration set 1.5 GHz
319 €319.00 Excl. VAT
Info
RSA-BW1 This software license increases the RBW of the Rigol RSA3000N spectrum analysers to 1 Hz to 10 MHz.

RSA3000-BW1

Rigol RSA3000 software option: RBW for 1 Hz to 10 MHz
345 €345.00 Excl. VAT
Info
RSA-B25 This software license increases the Real time bandwidth of the Rigol RSA3000N spectrum analysers from 10 MHz to 25 MHz.

RSA3000-B25

Rigol RSA3000 software option: Real-time analysis BW Upgrade to 25MHz
765 €765.00 Excl. VAT
Info
RSA-B40 This software license increases the Real time bandwidth of the Rigol RSA3000N spectrum analysers from 10 MHz to 40 MHz.

RSA3000-B40

Rigol RSA3000 software option: Real-time analysis BW Upgrade to 40MHz
1293.39 €1,293.39 Excl. VAT
Info

Accessories

The spectrum analysers of the RSA3000 series are standard delivered including:
  • Power cord
  • USB cable
  • Calibration certificate

Downloads
