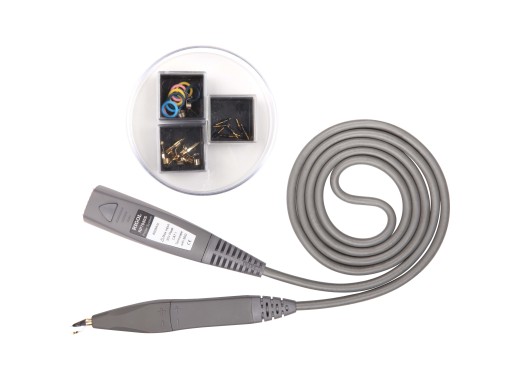

Rigol RP7080S single-ended active probe
Details
The Rigol RP7080S is an 800MHz active single-ended probe with 100kΩ input resistance and a 10:1 DC attenuation ratio. The RP7080S probe features a 1.4m cable, and is rated for a maximum input voltage of CAT I 30VAC.
Specifications
| Bandwidth | 800 MHz |
| Input capacitance | 1 pF |
| Input resistance | 100 kΩ |
| Attenuation ratio | 10:1 |
| Max voltage | 30 V DC |
| Cable length | 140 cm |
| Weight | 132 grams |
Accessories
The Rigol RP7080S probe comes with:
- PCK100 active differential probe calibration kit
- 9x 91Ω probe tips
- 2x Straight acuminate ground collar
- 2x Curved acuminate ground collar
- 2x Straight dentiform ground collar
- 2x Curved dentiform ground collar
- 8x Marker rings (4 colours, 2 per colour)
- 1x Probe bag
- 1x Storage box
Downloads
| Rigol RP7080S user manual |  (584.5 KB) | Download |
