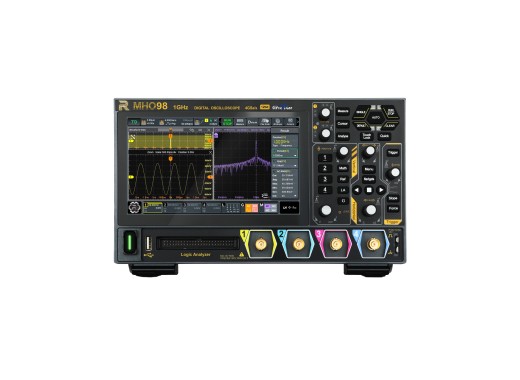

Rigol MHO98 oscilloscope limited edition
Details
The Rigol MHO98 is a limited edition oscilloscope from the MHO900 series, created to celebrate the release of this new series with significantly improved features. To make the limited edition worthy of its name, Rigol has equipped the MHO98 with some great specifications.
The MHO98 limited edition features the following:- Bandwidth of 1GHz
- 500Mpts memory depth
- Logic probe (PLA2216)
- 100MHz arbitrary signal generator option
- Full set of serial protocol decoding options (including I2C, SPI, UART, CAN, LIN, and more)
- 24K gold-plated limited edition nameplate with its own unique identification number (one of 1998 units)
- Carrying case
The MHO98 has 4 analog and 16 digital channels, and has a high capture rate of 1,000,000 waveforms per second. It also features a 1% DC gain accuracy as well as a 4GS/s sample rate. A large number of frames with data can be stored for further analysis, using the 32GB internal memory. In addition, the MHO98 oscilloscope has an ultra-low noise floor makes measurements on very small signals possible, resulting in cleaner signals.
The oscilloscope comes multiple interface options, which are USB host/device, LAN, HDMI, and Web Control. Furthermore is the oscilloscope powered via the USB-C port, resulting in multiple advantages over more traditional powering modes. A portable power source can be used to power the oscilloscope, consequently allowing the use of the oscilloscope anywhere. The device is light and compact due to the removal of an internal power supply. The oscilloscope also features a 7" touch screen LCD.
This product is in LIMITED supply. If the ADD TO CART button is enabled, don't miss your chance to purchase it.
Specifications
| Bandwidth | 1 GHz |
| Channels | 4 analog + 16 digital channels |
| Memory depth | 500 Mpts |
| Sample rate | 4 GS/s (divided by number of active channels) |
| Waveform capture rate | 1,000,000 wfm/s |
| Vertical resolution | 12 bits |
| Vertical scale | 200 µV/div - 10 V/div |
| Horizontal scale | 500 ps/div - 500 s/div> |
| Internal storage | 32 GB |
| Interfaces | LAN, HDMI, USB host/device, Web Control |
| Decoding options | I2C, SPI, UART/RS232, CAN, LIN |
| Arbitrary waveform generator | Yes |
| Display | 7" touch screen LCD (1024x600) |
| Dimensions | 265.35 x 161.75 x 77.38 mm |
| Weight | 1.6 kg |
Accessories
The Rigol MHO98 limited edition comes with the following accessories:
- 1x Power adapter
- 1x USB cable
- 1x Ground cable
- 4x Passive HighZ probe (500MHz)
- 1x Logic probe (PLA2216)
- 1x Set of serial protocol decoding options (including I2C, SPI, UART, CAN, LIN, and more)
- 1x Carrying case
Pros and cons
- 1GHz bandwidth
- 500Mpts memory depth
- 100MHz function generator included
Downloads
| Rigol MHO98 datasheet |  (8.9 MB) | Download |
