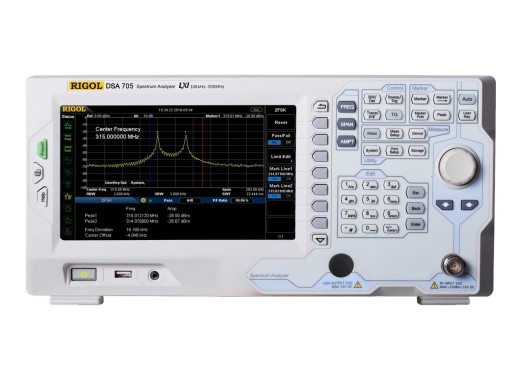

The Rigol DSA-705 is an entry-level spectrum analyser with basic specifications. It has a bandwidth of up to 500 MHz and a large screen.
The spectrum analyser is based on a fully digital intermediate frequency filtering. This gives several possibilities; high resolution, high measuring speed and high reliability. Furthermore, the analyser has a built-in pre-amplifier.
Frequency range | 500 MHz |
Frequency resolution | 1 Hz |
Internal reference frequency | 10 MHz |
Frequency counter | Yes |
Connectivity | USB (host/device) LAN |
Display | 8" (800 x 480) 64k colors |
Dimensions | 361.6 x 178.8 x 128 mm |
For more information, you can download the datasheet from the spectrum analysers.
The analyser comes with:
Rigol DSA-700 manual |
(4.14 MB) | Download |
