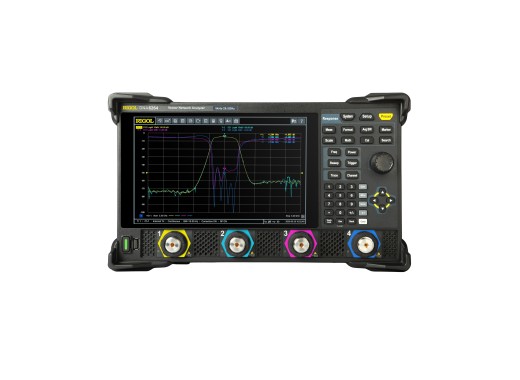

Rigol DNA6204 vector network analyser
Details
The Rigol DNA6204 is a 4-port vector network analyser covering 5kHz to 20GHz. As part of the DNA6000-series, it measures S-parameters, impedance, VSWR, and group delay and is suited to RF system integration, multi-port device testing, microwave module characterisation, production verification, and pre-compliance RF debugging. Unlike the compact DNA5000-series, the DNA6000-series is a bench-format instrument with 2-port and 4-port configurations available across the range.
The DNA6000-series delivers strong RF performance, with a typical dynamic range of 127dB (10MHz to 6.5GHz, at 10Hz IF BW) and trace noise as low as 0.003dB rms (typ.), which is an improvement over the DNA5000-series. The IF bandwidth is adjustable from 1Hz to 10MHz, giving direct control over the trade-off between measurement speed and noise floor. Frequency resolution is 1Hz across the full range.
Calibration options include SOLT, OSL, response, enhanced response, and ECal electronic calibration kits, with support for both mechanical cal kits and ECal in 2-port and 4-port configurations. The instrument runs Linux on a 10.1-inch capacitive display (1280x800) and supports physical keys, touch input, and an external keyboard and mouse. Connectivity includes LAN, USB (host and device), HDMI, GPIB, and Application I/O. The addition of GPIB makes the DNA6000-series well-suited to automated test environments. SCPI command sets and web-based remote control are both supported out of the box.
Model Overview
| Model | Bandwidth | Ports | RF Connector | Price |
|---|---|---|---|---|
| DNA6082 | 5 kHz – 8.5 GHz | 2 | N-type (F) | |
| DNA6084 | 5 kHz – 8.5 GHz | 4 | N-type (F) | |
| DNA6142 | 5 kHz – 14 GHz | 2 | N-type (F) | |
| DNA6144 | 5 kHz – 14 GHz | 4 | N-type (F) | |
| DNA6202 | 5 kHz – 20 GHz | 2 | 3.5 mm (M) | |
| DNA6204 | 5 kHz – 20 GHz | 4 | 3.5 mm (M) | |
| DNA6262 | 5 kHz – 26.5 GHz | 2 | 3.5 mm (M) | |
| DNA6264 | 5 kHz – 26.5 GHz | 4 | 3.5 mm (M) |
Specifications
| IF bandwidth | 1 Hz – 10 MHz |
| Frequency resolution | 1 Hz |
| Amplitude resolution | 0.01 dB |
| Dynamic range (typ.) | 127 dB (10 MHz – 6.5 GHz, at 10 Hz IF BW) |
| Noise floor | -125 dBm (10 MHz – 6.5 GHz, norm. to 1 Hz) |
| Max. input level | +27 dBm / ±35 VDC |
| Interfaces | LAN (GbE), USB 3.0 Host, USB 3.0 Device, HDMI, GPIB, Application I/O |
| Internal storage | 256 GB |
| Display | 10.1" capacitive touch (1280 × 800) |
| Dimensions | 358.1 x 214.8 x 300 mm |
| Weight | 13 kg |
Options
| Time-Domain analysis (software) | DNA-TDA10 |
| Distance to Fault (software) | DNA-DTF10 |
| Various calibration kits |
For more information, contact us.
Accessories
The Rigol DNA6204 comes by default with:
- Power cord
Downloads
| Rigol DNA6000 datasheet |  (3.99 MB) | Download |
| Rigol DNA6000 user manual | (7.75 MB) | Download |
