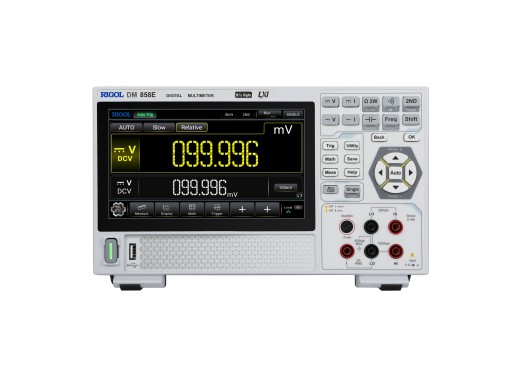

Rigol DM858E multimeter
Promotion! This product is temporarily reduced in price until December 31st 2026!
Details
The Rigol DM858E is a 5½ digit true-RMS benchtop multimeter with an accuracy of 0.060% DCV. This 120,000 counts multimeter can perform up to 80 measurements per second. Up to 20,000 points can be logged per group and used for further analysis. Additional features include 11 measurement functions, 5 math functions and 3 graphical display types. The multimeter has 10 built-in groups of data storage and 10 groups of setup storage in addition, the device supports remote control via Web Control. The DM858E has a compact size and a 7" touchscreen display.
Furthermore, the multimeter can be powered by a power bank using a USB type-C interface. Together with the compact size, the multimeter is very portable and can be used to satisfy your test requirements in the field.
Model overview
We offer multiple multimeters in the DM858 series, differing in the max. AC/DC current, max. capacitance, DCV accuracy, reading rate and logging memory.| Model | DM858E | DM858 | |
|---|---|---|---|
| Max. AC/DC current | 3 A | 10 A | |
| Max. capacitance | 1 mF | 10 mF | |
| DCV accuracy | 0.06 % | 0.03 % | |
| Reading rate | 80 readings/s | 125 readings/s | |
| Logging memory | 20,000 points | 500,000 points | |
| Price |
Specifications
| Display resolution | 120000* counts, 5 ½ digits |
| Max. AC voltage | 750 V |
| Max. DC voltage | 1000 V |
| Max. resistance | 50 MΩ |
| Frequency | 20 Hz - 10 kHz |
| Other functions | Diode, Short-circuit |
| True-RMS | Yes |
| Data logging | Yes |
| Display | 7" touchscreen |
| Required power output | 12 V, 3 A. 10 W |
| Connectivity | LAN, USB (host/device) |
| Eleshop noise production rating | ★ ★ ★ ★ |
| Dimensions | 266 x 165 x 80 mm |
| Weight | 2 kg |
120000 counts is only possible in manual mode. Auto mode has 100000 counts, as tested by Eleshop
Accessories
The Rigol DM858E comes with:- 1x power adapter
- 2x alligator clips
- 2x digital multimeter test pen
- 2x backup fuses (AC, 250V, F10 A)
Pros and cons
- Remote control via Web Control
- Can be powered by a power bank via USB-C
- No duty cycle
- Logging memory of 20,000 points
Downloads
| Rigol DM858/DM858E datasheet |  (6.41 MB) | Download |
| Rigol DM858/DM858E user guide | (9.39 MB) | Download |
| Rigol DM858/DM858E programming guide | (2.44 MB) | Download |
