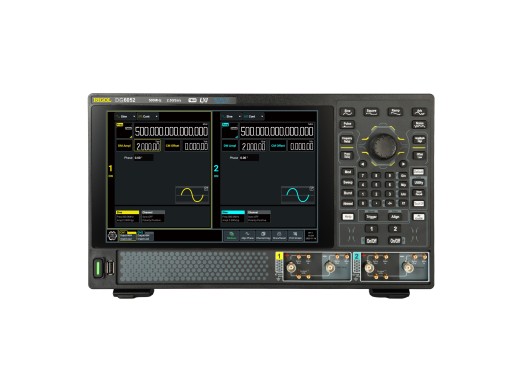

The Rigol DG6052 is a 2-channel high-voltage differential function/arbitrary waveform generator that combines a 500MHz bandwidth, 2.5GSa/s sample rate, and 16-bit vertical resolution in a single instrument. Three switchable output modes (HBW for maximum bandwidth up to 500MHz, AMP for high-amplitude differential output up to 20Vpp, and SND for standard single-ended operation) eliminate the need for external power amplifiers or baluns, simplifying the test chain and reducing costs.
With up to a 256Mpts/CH arbitrary waveform memory (512Mpts/CH optional), advanced output types including IQ, PRBS, Pattern, and Sequence, and a 10.1-inch HD touch screen, the DG6052 covers power semiconductor testing, high-speed digital circuit verification, automotive bus simulation, and advanced measurement options. All channels feature full electrical isolation, ensuring clean signal output without ground loops. For a 4-channel variant, see the DG6054.
Model overview
| Model |
DG6052
|
DG6054
|
DG6102
|
DG6104
|
| Channels |
2 |
4 |
2 |
4 |
| Max. bandwidth |
500 MHz |
500 MHz |
1 GHz |
1 GHz |
| Price |
7799
€7,799.00
Excl. VAT
|
13599
€13,599.00
Excl. VAT
|
10299
€10,299.00
Excl. VAT
|
16999
€16,999.00
Excl. VAT
|
Specifications
| Sample rate | 2.5 GSa/s |
| Vertical resolution | 16 bits |
| Arb waveform memory | 256 Mpts/CH |
| Output modes | SND (BNC, standard single-ended), AMP (BNC, up to 20 Vpp), HBW (SMB, up to 500 MHz / 800 ps rise time) |
| Continuous waveforms | Sine, Square, Ramp, Pulse, Noise, Arb, DC, Harmonic (up to 20th order) |
| Modulation | AM, FM, PM, ASK, FSK, PSK, PWM, SUM |
| Advanced output | Sequence, PRBS, Multi-pulse, Multi-tone, Pattern, IQ |
| Display | 10.1" touch screen, 1280 x 800 |
| Interfaces | LAN (LXI-C), USB host/device, HDMI |
| Dimensions | 358 x 215 x 122 mm |
| Weight | 5.28 kg |
Options
| Rigol DG6000-2RL |
Arbitrary waveform memory from 256 Mpts/CH to 512 Mpts/CH. |
Please contact us if you want more information about the options available. |
Accessories
The DG6052 comes by default with:
- Power cord
- SMB pin insertion/extraction tool
- USB cable (CB-USBA-USBB-FF-150)
- 4/8 BNC cables (CB-BNC-BNC-MM-100)
Downloads
(13.2 MB)
