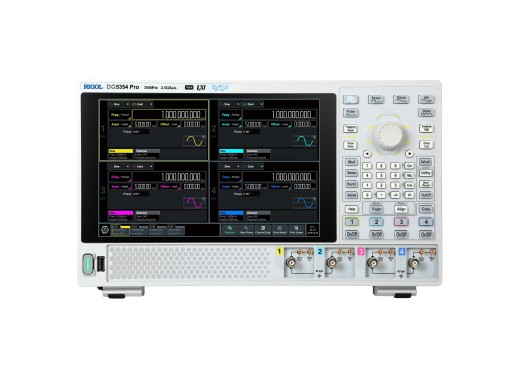

The Rigol DG5354 Pro is a high-end quad-channel arbitrary function generator with a maximum frequency of 350MHz and a high sample rate of 2.5GSa/s.
The channels are isolated and equivalent to each other.
The DG5354 Pro is part of the Rigol DG5000 Pro series of function generators, all featuring a high resolution of 16 bits and a large memory depth of 64Mpts/CH.
The DG5354 Pro also has multiple waveform outputs such as sine, square, ramp, pulse, noise, arb, and harmonic.
The generator is multifunctional and includes many features such as a sweep and burst function, PRBS generator as well as analog and digital modulation.
The device features a large 10.1" touchscreen LCD, making it easily accessible.
Optionally, the device can be powered using a battery holder, which allows for the function generator to be used in the field.
It also has an internal memory of 128GB.
Furthermore, the device features LAN, USB host/device, HDMI interfaces and standard web control for remote access.
Model overview
| Model
| Bandwidth
| Channels
| Price
|
| DG5252 Pro
|
250 MHz |
2 |
1590
€1,590.00
Excl. VAT
|
| DG5352 Pro
|
350 MHz |
2 |
3299
€3,299.00
Excl. VAT
|
| DG5502 Pro
|
500 MHz |
2 |
4899
€4,899.00
Excl. VAT
|
| DG5254 Pro
|
250 MHz |
4 |
2599
€2,599.00
Excl. VAT
|
| DG5354 Pro
|
350 MHz |
4 |
5599
€5,599.00
Excl. VAT
|
| DG5504 Pro
|
500 MHz |
4 |
6544.15
Regular Price:
€7,699.00
Now:
€6,544.15
Excl. VAT
|
| DG5258 Pro
|
250 MHz |
8 |
4899
€4,899.00
Excl. VAT
|
| DG5358 Pro
|
350 MHz |
8 |
9899
€9,899.00
Excl. VAT
|
| DG5508 Pro
|
500 MHz |
8 |
12599
€12,599.00
Excl. VAT
|
Specifications
| Vertical resolution | 16 bits |
| Sample rate | 2.5 GSa/s |
| Frequency resolution | 1 µHz |
| Amplitude range | 1 mVpp - 10 Vpp |
| Waveform length | 64 Mpts/CH |
| Modulation | AM, FM, PM, ASK, FSK, PSK, PWM, SUM |
| Built-in functions | Sine, Square, Ramp, Pulse, Noise, Arb, Harmonic, Linear, Log, Step, N-cycle, Gated, PRBS |
| Output impedance | 50 Ω |
| Interfaces | USB host/device, LAN, HDMI, Web control |
| Display | 10.1" touchscreen (1280x800) |
| Dimensions | 358 x 215 x 122 mm |
| Weight | 4.6 kg |
For more information about any of the software options, please contact us.
Options
Accessories
The Rigol DG5354 Pro comes with the following accessories:
- 4x BNC cables
- Power cord
- USB cable
Pros and cons
- Large touchscreen display
- 16 bits
- 2.5 GSa/s
- 4 channels
- Can optionally be fitted with a battery
