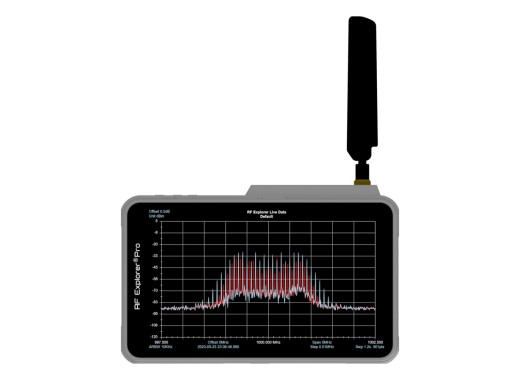

RF Explorer Pro spectrum analyser
Details
The RF Explorer Pro is a spectrum analyser with a bandwidth of 15MHz to 3.3GHz. It is highly integrated and has the abilities of a spectrum analyser, power meter and signal-tracking generator. The RF Explorer pro spectrum analyser offers precise sweep spectrum analysis, fast detection and continuous monitoring capabilities. It also has a touchscreen anti-glare display, can create heatmaps of signal strengths and has a Wi-Fi analyser. The spectrum analyser allows for precise sweep scans and it has multiple advanced modes such as zero span, waterfall 2D and 3D. The RF Explorer pro spectrum analyser has built-in memory that automatically records, saves and replays spectrum data scans. Also, it has a battery of 4500mAh, which allows for a battery life of 3,5-5 hours and it is charged in 3 hours.
Power meter
The RF Explorer pro spectrum analyser can work as a power meter. It can be used for resolving 10MHz to 8GHz band detection events in just 100μs with the continuous model.
Tracking generator
The RF Explorer Pro spectrum analyser can also work as a signal-tracking generator. The signal tracking generator is for rapid diagnostics and characterization of cables, filters and amplifiers with a range of 24MHz to 6GHz.
Specifications
| Bandwidth | 15 MHz - 3.3 GHz |
| RBW | 3 kHz - 2.5 MHz |
| DANL | - 130 dBm/Hz |
| Amplitude accuracy | ± 1.5 dB |
| Phase noise | - 160dB/ Hz |
| Tracking generator | Yes |
| Interfaces | USB, Micro HDMI, Ethernet with USB adapter (adapter not included) |
| Display | 8" IPS TFT (1280x800) |
| Dimensions | 215 x 140 x 25 mm |
| Weight | 570 g |
Accessories
The RF Explorer Pro spectrum analyser comes with the following accessories:- Rubber duck SMA articulated antenna (400-900 MHz)
- Black SMA articulated antenna (900-6000 MHz)
- Type-C USB cable
- Storage case
Pros and cons
- Includes power meter and tracking generator
- 8" IPS anti-glare display
