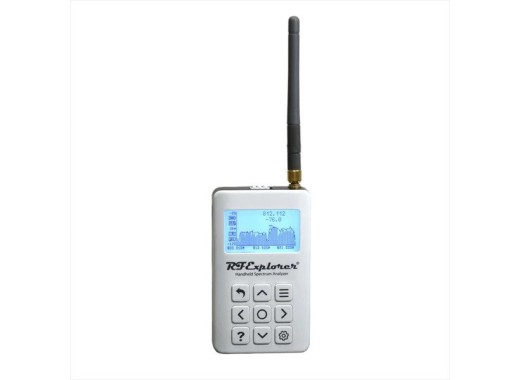

RF Explorer 6G WB PLUS spectrum analyser
Details
The RF Explorer 6G WB PLUS is a powerful handheld spectrum analyser with a range of 15 MHz up to 6.1 GHz. It is well suited for analysing HF, VHF, UHF and all usable HAM bands. This allows you to analyse a very wide range of frequency ranges, e.g. radios, Bluetooth and 2.4/5 GHz WiFi networks.
A spectrum analser which can also analyse LF and MF, is the RF Explorer 6G COMBO PLUS SLIM spectrum analyser.
This spectrum analyser offers a stronger metallic body, a more convenient USB connector on the side, a larger internal battery capacity and a gapless bandwidth, compared to the standard 6G Combo model.These handheld spectrum analysers from RF Explorer are inexpensive but still have a surprising list of specifications. When designing, installing and troubleshooting wireless systems, it is often quite difficult to predict the propagation of radio waves. These inexpensive analysis devices offer the possibility to visualize the properties of various frequencies.
These analysers feature a large battery, making them more than 10 hours to use on one charge. With the supplied software they can display data on a PC, in high detail and with various functions such as '3d-waterfall' display, CSV and image export. In addition, the meter can be connected to a telephone via an OTG cable and measured via an Android app. This app can be downloaded and tried for free, but requires an optional license to work with the meter. Several other third-party software are available from the same website. Users receive lifelong firmware updates for free.
Specifications
| Bandwidth | 15 MHz - 6.1 GHz (expansion is available up to 7.5GHz with Wideband license |
| Span | 2 - 960 MHz in single sweep |
| Frequency resolution | 1 kHz |
| Average noise floor | -125 dBm (typ. LNA) |
| Amplitude resolution | 0.5 dBm |
| Automatic RBW | 2.6 kHz - 600 kHz |
| RF impedance | 50 Ω |
| Frequency precision | ±1.0 ppm |
| Display | 128 x 64 pixels |
| Connectivity | USB 2.0 |
| Battery | 1800 mAh Li-ion (10+ hours) |
| Weight | 200 grams |
| Dimensions | 113 x 70 x 25 mm |
Accessories
The following is included with the product:
- Mini-USB cable
- Dual band 144/430 MHz telescopic antenna
- UHF 400 - 900 MHz antenna
- Dual band 5/2.4 GHz antenna
- EVA case
Pros and cons
- Gapless bandwidth
- Pocket size and lightweight
- Small display
