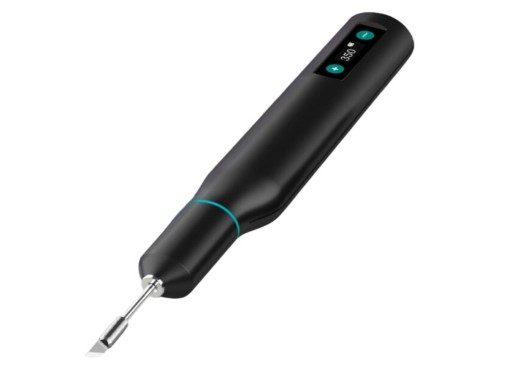

Quick TS1 wireless soldering iron
Details
The Quick TS1 is a wireless soldering iron and is suitable for portable electronics repairs and fine soldering on the go. This iron runs on an integrated 2600mAh lithium battery, good for up to 30 minutes of soldering on a single charge, and recharges via USB-C. The tip temperature is adjustable from 100°C to 420°C and is shown on an OLED display, with only a couple of buttons for easy, intuitive control. A sleep function lowers the tip temperature after a minute without use, which saves battery and adds safety. In power and tip size, this soldering iron sits close to the Fnirsi HS-03.
This iron uses the Quick SS1 series of precision tips, available separately in chisel, bevel, conical and knife shapes, so the tip can be matched to fine SMD work or heavier joints. A simple stand is included for resting the iron between joints.
SS1 tips
The following Quick SS1 tips are available separately for the Quick TS1:
| Model | Shape | Size | Price | Stock |
|---|---|---|---|---|
| SS1-1.6D | Chisel | 1.6 mm | €5.90 | |
| SS1-2.4D | Chisel | 2.4 mm | €5.90 | |
| SS1-3C | Bevel | 3 mm | €5.90 | |
| SS1-B | Conical | 1 mm | €5.90 | |
| SS1-I | Conical | 0.4 mm | €5.90 | |
| SS1-J | Bent conical | 0.4 mm | €5.90 | |
| SS1-SK | Knife | 3 mm | €5.90 |
Specifications
| Power | 10 W |
| Temperature range | 100 °C - 420 °C |
| Temperature stability | ±2 °C (still air, no load) |
| Tip system | Active (SS1) |
| Battery | 2600 mAh 18650 lithium (3.7 V) |
| Battery life | Up to 30 minutes |
| Charging | USB-C |
| Display | OLED |
| Automatic standby | Yes, after 1 minute |
| Dimensions | 198 x 27 x 21 mm |
| Weight | 200 g |
Accessories
The Quick TS1 comes with:
- 1x Soldering stand
- 2x SS1 tips
Pros and cons
- Simple stand included
- Minimal buttons on the iron
- Standard user-replaceable 18650 battery
- Only 10W
- Up to 30 minutes of soldering per charge
Downloads
| Quick TS1 user manual |  (235.31 KB) | Download |
