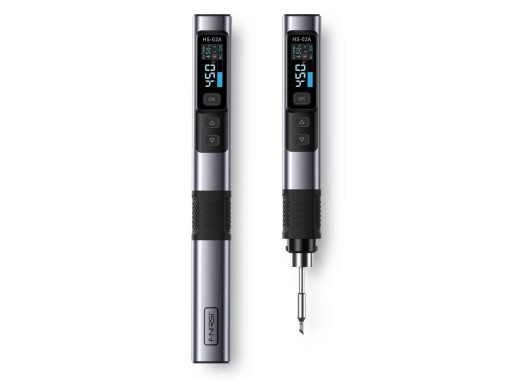

Fnirsi HS-02A soldering iron kit
Details
The Fnirsi HS-02A is a smart portable soldering iron with an ergonomic design. This version is the standard set, offering a soldering iron, a handy carrying bag, a mini stand and 6 soldering tips. The iron can be powered with up to 100W. No power adapter is included, but the set does come with a DC to USB-C adapter cable, so the iron can be powered from a suitable DC supply. Alternatively, Eleshop offers a 65W adapter or 100W adapter for faster heat-up, and a flexible USB-C cable. The HS-02A has a temperature range of 100-450℃, heats up to an operational temperature in 4 seconds, and has a great temperature recovery during soldering.
The HS-02A has a metal housing, and the tip is firmly secured in the soldering iron, unlike the TS101 and the Pinecil. Finally, this model is part of the HS-02 series and is supplied with 6 standard tips, while the HS-02B is the precision version.
Specifications
| Power | 100 W |
| Temperature range | 100 °C - 450 °C |
| Tip system | Active |
| Heating time | ~ 4 sec |
| Temperature stability | ± 2 % |
| ESD safe* | Yes |
| Display | 0.96" IPS colour screen |
| Automatic standby | Yes, after 30 minutes |
| Dimensions | 180 x 20 mm |
| Weight | 61 g |
* The soldering iron is only ESD-safe when it is connected to ground via an external grounding cable (not included).
Buy your HS-02A tips hereAccessories
The Fnirsi HS-02A soldering iron kit comes with:- Carrying bag
- Mini soldering iron stand
- DC to USB-C adapter cable
- HS-02A-K soldering tip (knife 4.5 mm)
- HS-02A-KU soldering tip (knife 2.7 mm)
- HS-02A-JS soldering tip (conical bent, sharp tip)
- HS-02A-I soldering tip (conical, sharp tip)
- HS-02A-C2 soldering tip (bevel ⌀2.2 mm)
- HS-02A-B soldering tip (conical ⌀1 mm)
Pros and cons
- Includes metal hood for safe storing
- Interchange tips easily
- Requires a long tip USB-C connector
Downloads
| Fnirsi HS-02 A/B manual |  (659.07 KB) | Download |
