pros:
- handle is nice and tiny
- stand is a big and heavy, solid piece of metal
cons:
- it makes a quiet whining noise even when turned off (AC/DC switching PSU)
- the pump is definitely not a brushless vortex one, it has a membrane pump
- the cable/hose is not flexible enough for precise SMD work. The hose itself is made of silicone, the cables inside is probably the culprit.
- plastic case
- cooling fan runs full power even in sleep mode
- parameter setting is a bit annoying (try to go from 100°C to 400°C, it takes a while)

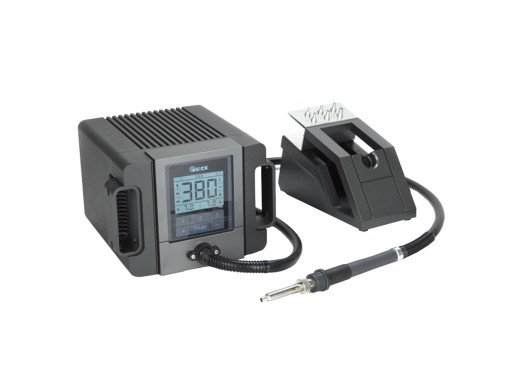

Quick TR1100 ESD hot air soldering station
Details
The Quick TR1100 is a professional hot air soldering station suites for small rework cases. The nozzles are as small as 1.5 mm and especially suited for smaller SMD work.
The pump is driven by a brushless motor allowing for silent and stable operation. With three presets for temperature and air flow the device is easily operated.
Specifications
| Power | 200 Watt |
| Temperature range | 100 °C - 450 °C |
| Heating element | Ceramic |
| Dimensions | 190 x 190 x 134 mm |
| Max airflow | 115 l/min |
| Length hose | ± 100 cm |
| Weight | 3.65 kg |
Accessories
The Quick TR1100 ESD comes bundled with:
- Holder for hot air handle
- Net cable
- Manual
- 6 nozzles (1.5, 2.0, 2.5, 3.0, 3.5, 4.0 mm diameter)
