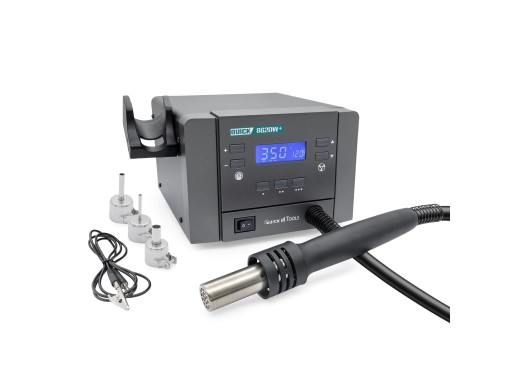

Quick 862DW+ ESD hot air soldering station
Details
The Quick 862DW+ ESD is an inexpensive hot air station with a high power of 1000W and a maximum airflow of 50L/min. This device is designed for soldering SMD components such as SOIC, QFP, PLCC, CHIP and BGA. Furthermore, the Quick 862DW+ is also suitable for drying, removing paint, melting, heating and disinfecting surfaces. Due to the high power and a ceramic heating element, rapid heating to the desired temperature is possible. The 862DW+ ESD has three preset buttons for which the temperature and the amount of airflow can be set and stored in the internal memory.
The Quick 862DW+ ESD uses a magnetic switch, which immediately activates the sleep mode when the handle is placed in the holder. Moreover, this device has an automatic cooling system, which allows for an extended service life of the heating element and the holder. The settings can be blocked by means of a password.
For this model, the airflow is only 50L/min. In case high airflow is important for you, consider the Quick 861DE, which has an airflow of 90L/min.
Specifications
| Power | 1000 W |
| Temperature range | 100 ℃ - 500 ℃ |
| Maximum airflow | 50 L/min |
| ESD safe | Yes |
| Heating element | Ceramic |
| Compressor type | Fan |
| Dimensions | 180 x 210 x 130.6 mm |
| Weight | 2.6 kg |
Accessories
The 862DW+ ESD comes bundled with:
- EU power cord
- TR3 holder for the hot air handle
- 3 different nozzles (diameters 2.5mm, 5.0mm, 8.4mm)
- ESD grounding wire
Pros and cons
- High power
- Ergonomic handle
- No separate stand for handle, only built-in stand
Downloads
| Quick 862DW+ user manual |  (1.25 MB) | Download |
