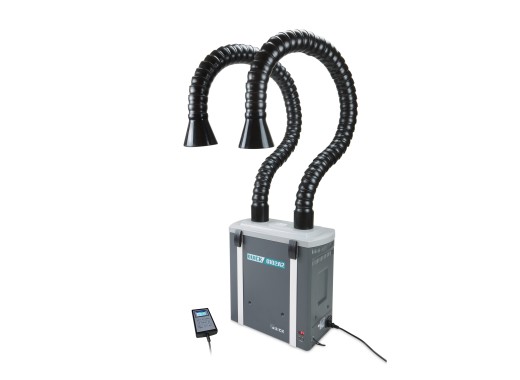

The Quick 6102A1 is a high quality soldering fume extractor at an affordable price. The extractor comes with a double suction tube and has an airflow capacity of 240m3/h. The 6102A1 also generates a static pressure of 3000Pa thanks to the brushless DC fan. This system filters and circulates the air it absorbs and can extract vapours from the source.
The triple filter effectively removes the hazardous substances from fumes. Additionally, the pre-filter, central filter and main filter are designed in separate structure. Therefore, you can make full use of the filters and they are easy to, seperatly, replace which reduces the cost accordingly.
It is hard to give an indication on when to replace the filters, because this heavily depends on the intensity of usage and what kind of fumes you extract. But to give you an indication: usually the pre- and central filters are being replaced once or twice a year. On average, the main filter is being replaced every year or every two years. The display on the fume extractor tells you when the pressure inside is too high, due to congestions because of a dirty filter and so you get an indication on when to replace the filters.
Very easy to install because of the integrated structure design; no extra pipeline is required. Also easy to operate with the wired remote control with straightforward controls (On/Off switch with adjustable air flow knob). The noise caused during operation is low.
Inlets | 2 |
Power | 250 W |
Static pressure | 3000 Pa |
Airflow | 240 m3/h |
Noise level | ≤ 65dB |
Filter | pre-, middle- and main filter |
Filter efficiency |
99.97% of particles >0.3μm |
Tube length | 150 cm |
Dimensions | 470(L) × 230(W) × 500(H) mm |
Weight | 15.5 kg |
This product includes:
Quick 6101A1/6102A1 datasheet |
(3.31 MB) | Download |
