This product is retired
  •
Product number: ELE003502

Be the first to review this product

Details

As this product is superseded by a newer version, this product is no longer being sold. Please check out the Qianli Super Cam X instead.

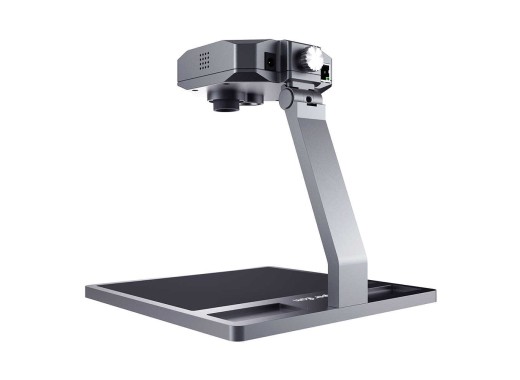

The Qianli thermal camera is an IR camera that is specifically designed for detecting thermal hot-spots on small PCB's. This camera reduces diagnostic and repair time for damaged or malfunctioning components and short-circuits. The device features an IR sensor and a visible light sensor to create a hybrid picture which can pinpoint the location of a fault very precisely.

The camera comes with special PC software to connect and configure the different settings. The connection with the camera is done through an ethernet connection with an integrated RJ45 plug. This software set has different built-in functions to simplify various processes. For example:

  • Configurable thermal limit alarms.
  • Recording of video & pictures.
  • Quick hot-spot detection.
  • Different color display modes: white heat, iron oxide red, rainbow.

The camera features an insulating plastic base with a strong aluminium support that holds the actual camera.

Model overview

Model Super Cam Super Cam X
Bracket size 181 x 180 x 170 mm 150 x 160 x 161 mm
Temperature measurement range 0℃ - 400℃ -20℃ - 120℃
Thermal resolution 160 x 120 px (19.2k) 260 x 200 px (52k)
Camera angle 61.8° x 49.5° 42° x 32°
Display mode visible light, infrared, dual mix infrared
Heat measurement distance 12.5 cm 2 mm up to ∞
Sample comparison
Yes
Yes
3D thermal field distribution
No
Yes
Regional temperature curve calculation
No
Yes
Connectivity RJ45 USB-C

Specifications

Temperature accuracy± 5°C
Detector typeUncooled vanadium oxide (VOx) detector
Output Resolution1920 x 1080 pixels
Video/Image storageMP4/JPEG
Power consumption2.2W
Bracket materialAluminium
Weight1.1 kg

Accessories

The Qianli thermal comes with:

  • RJ45 cable
  • Anti-static mat
  • Power adapter

Pros and cons

  • Large temperature range
  • Included software
  • Low power consumption
