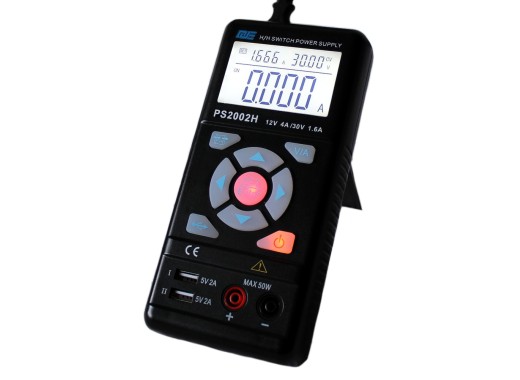

PS2002H handheld power supply
Details
This DC power supply is ideal for mobile use due to its small size and light weight. It can be used in both a constant voltage and constant current mode and has a high efficiency thanks to its switching power supply. The clear LCD display shows the set voltage and current values in a resolution of 10mV and 1mA respectively. Setting the desired values is very easy and can be done by using the available buttons to select the decimal position and then change it. The power supply also offers a Store/Recall function so you can easily save and reuse fixed output profiles.
Besides the two standard 4 mm plug connectors, there are also two 5V 2A USB connectors that can be used, for example, to charge a smartphone.
Specifications
| Max. output voltage | 0.3 - 30 V, adjustable with steps of 10mV |
| Max. output current | 0 - 3.75 A, adjustable in steps of 1mA |
| Max. output power | 50 W |
| Input voltage | 90 - 265 V / 43 - 65 Hz |
| Input current | 1A |
| Constant voltage precision | < 0.05% + 3 mV |
| Constant current precision | < 0.05% + 3 mA |
| Ripple | < 10 mV rms |
| Cooling | Passive without fan |
| Weight | 370 g |
| Dimensions | 185 x 88 x 38 mm |
| Short/Open circuit protection | Yes |
Downloads
| PS2002H user manual |  (1.03 MB) | Download |
