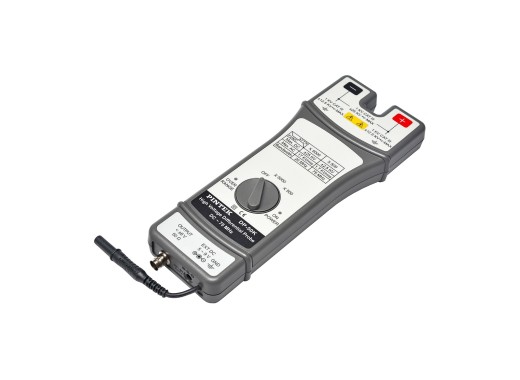

The Pintek DP-50K differential probe can be used to measure very high voltages up to 50kVpp with floating potentials and it has a high bandwidth of 75MHz. This combination of measuring floating potentials and a high bandwidth makes this product unique. The differential probe has a maximum voltage of 8.8kV to ground and attenuation of x500 and x5000.
Model overview
The Pintek DP-xxK differential probes series differ mainly in max. input voltage, attentuation, bandwidth and max. voltage to ground.
| Model | Max. input voltage | Attenuation (switchable) | Max. bandwidth | Max. voltage to ground | Price |
| Pintek DP-15K
| 15 kVp-p | x100, x1000 | 75 MHz | 7.5 kV |
419
€419.00
Excl. VAT
|
| Pintek DP-40K
| 40 kVp-p | x500, x5000 | 75 MHz | 10 kV |
639
€639.00
Excl. VAT
|
| Pintek DP-50K
| 50 kVp-p | x500, x5000 | 75 MHz | 8.8 kV |
859
€859.00
Excl. VAT
|
Specifications
| Max. measurement AC |
50 kVrms |
Max. measurement DC |
25 kV |
| Peak voltage |
50 kVpp |
| Accuracy |
± 2% |
| Input impedance |
280 MΩ |
| Output impedance |
50 Ω |
| Dimensions |
275 x 147 x 34 mm |
| Weight |
0.488 kg |
Accessories
The Pintek DP-50K comes with the following accessories:
- Insulated BNC/BNC Lead (BP-250)
- AC Adapter
- 2 x High Voltage IC Clip (BP-266N)
- 2 x Banana to Banana High Voltage Plug (BP-367)
- 2 x Alligator Plug (BP-276N)
- 2 x High Voltage Extension Cable, 1 meter / 30 KV DC (ETL3100)
- Ground Extension Cable, 1 meter / 6 KV DC (ETG-6100)
Pros and cons
- High voltage to ground
- High bandwidth
Downloads
(3.36 MB)
