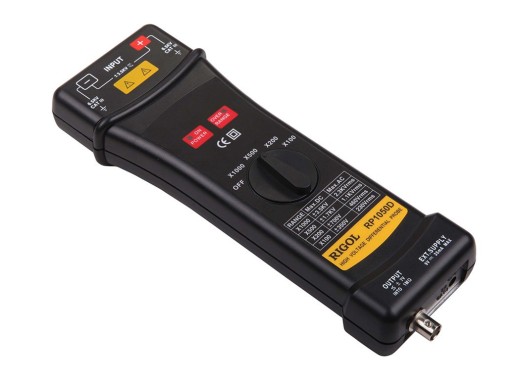

Rigol RP1050D differential probe
Details
With this probe it is possible to convert a differential input voltage of up to 7000 Vpp to a low voltage signal so that the waveform
can be analyzed with an oscilloscope. The frequency range of this probe is 0-50 MHz which makes it very suitable for large electricity tests and R&D.
The RP1050D is suitable for all universal oscilloscopes. Furthermore, the labeled attenuation ratios are applicable when the input impedance of the oscilloscope is
1 MΩ . These attenuation ratios will be doubled when the input impedance of the oscilloscope is 50 Ω.
Specifications
| Max. Differential input voltage | 7000 V |
| Input voltage range | ≤700Vpp (100x att.) ≤1400Vpp (200x att.) ≤3500Vpp (500x att.) ≤7000Vpp (1000x att.) |
| Output voltage | ≤ 7V |
| Attenuation ratios | 100x, 200x, 500x, 1000x |
| Bandwidth | DC-50MHz (200x, 500x, 1000x) DC-25 MHz (100x) |
| Power supply | 9 V (0.4W) |
Downloads
| RP1050D User Guide |  (359.08 KB) | Download |
