Peak Electronics LCR40
Details

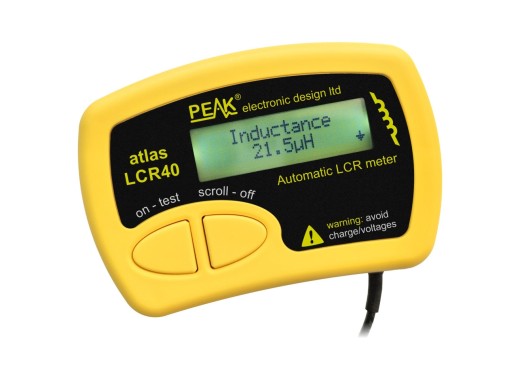

The Peak Electronics LCR40 is a simple, compact LCR meter designed for measuring passive components. It can measure resistance up to 2MΩ, capacitance up to 10,000µF and inductance up to 2H. The meter automatically determines the component type and test frequency to provide the most accurate results. Furthermore, the LCR40 uses detachable probes which can be swapped to SMD tweezers or needle probes. It is recommended that when switching probes, the probe compensation should be re-measured to ensure that the probes impedance doesn't skew the results for lower value components.
If you need an LCR meter which has a higher resolution and more component information, consider the LCR45, which is the upgraded version of the LCR40.
Specifications
| Resistance | 1 Ω - 2 MΩ |
| Accuracy resistance | ±1.2 Ω or ±1.0% |
| Capacitance | 0.5 pF - 10,000 µF |
| Accuracy capacitance | ±1.0 pF or ±1.5% |
| Inductance | 1 µH - 2 H |
| Accuracy inductance | ±1.6 µH or ±1.5% |
| Test frequencies | DC, 1 kHz, 15 kHz, 200kHz |
| Power supply | GP23 12V battery |
| Display | LCD (low level backlight) |
| Dimensions | 103 x 72 x 20 mm |
Accessories
The LCR40 comes with:
- 2x Removable 2mm hook probe
- 2x GP23 battery
Pros and cons
- Simple interface
- Only provides basic measurements
Downloads
| LCR40 datasheet |  (503.8 KB) | Download |
| LCR40 user guide | (367.67 KB) | Download |
| Peak Electronics – Model Comparison | (169.9 KB) | Download |
