Peak Electronics DCA75+LCR45 Atlas pro pack

The Atlas Pro Pack by Peak Electronics. Combining the 2 most popular meters that Peak offers. The LCR45 and DCA75.

LCR45

The LCR45 by Peak Electronics is a compact impedance meter. The meter measures both the real and the inductive/capacitive part of the impedance a circuit has. When a component or circuit is connected and the test button is pressed, the LCR45 displays the component type and its properties. Measurement results can be displayed in either complex or polar values.
A more detailed description can be found on the product page of the LCR45.

DCA75

The DCA75 by Peak Electronics is an analysis device for semiconductors. Once a transistor is connected to the DCA75 it automatically initiates the analysis. It determines the type of semiconductor that is connected and measures the data specific to the type, for example characteristic voltages or Pinout of the device.
A more detailed description can be found on the product page of the DCA75.

Package

This Atlas pro pack offers meters that can measure amongst others: impedance, resistance, capacitance, inductance, semiconductor characteristics and a lot more. Apart from that everything that is included with each separate device is included in this pack. With the addition of 2 extra batteries. This all comes cheaper than when buying the meters seperately.

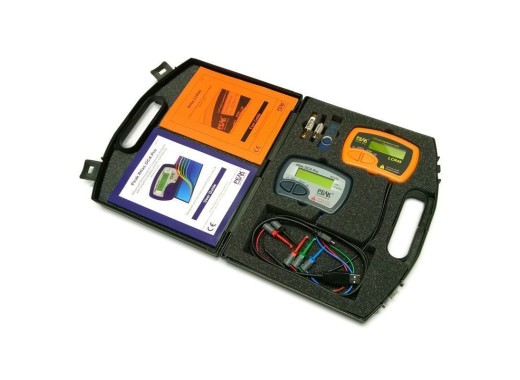

In this pack

• Carrying case
• DCA75
• LCR45
• Manuals
• Measurement tips for DCA75
• Gold-plated measurement tips for LCR45, with separate clips
• USB cable
• Flash-drive with software
• Batteries
