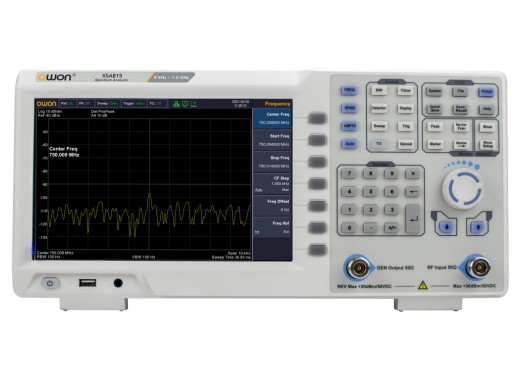

The Owon XSA815-TG spectrum analyser has an excellent price/quality ratio, it has a frequency range up to 1.5 GHz and comes with a tracking generator. The tracking generator supports a bandwidth of 100 kHz to 1.5 GHz. Eleshop also sells an analyser without tracking generator, namely the Owon XSA815.
Furthermore, the spectrum analyser has a 9" LCD screen which is smaller than the Owon XSA1000 series spectrum analysers which have a 10.4" LCD screen.
Moreover, the minimum noise level of the analyzer is -140 dBm/Hz and -160 dBm/Hz with the pre-amplifier turned on.
What differentiates Owon spectral analysers from other spectral analysers is that it comes with certain options such as a EMI pre-compliance function, waterfall plot graphic and a standard Pass/Fail on-site test and alert function.
Model overview
| Model
| XSA815-TG
| XSA1015P-TG
|
| Phase noise (at 10 kHz offset)
| < -80 dBc/Hz
| < -106 dBc/Hz
|
| Display
| 9" LCD (1280 x 800)
| 10.4" LCD (1024x768)
|
| Price
|
750
€750.00
Excl. VAT
|
975.21
€975.21
Excl. VAT
|
Specifications
| Bandwidth | 9 kHz - 1.5 GHz |
| Resolution | 1 Hz |
| Noise level | Up to -140 dBm/Hz, with pre-amplifier on up to -160 dBm/Hz |
| Tracking generator | 100 kHz - 1.5 GHz, -40 dBm - 0 dBm |
| Connections | USB host/device, LAN (RJ45), HDMI, earphone port |
| Dimensions | 375 mm x 185 mm x 120 mm |
| Weight | 3.7 kg |
Accessories
The XSA815-TG comes by default with:
- Power Cord
- Quick guide
- USB Cable
Pros and cons
- Cost-effective Owon spectrum analyser
- Comes with options such as a EMI test function, waterfall plot graphic and a pass/fail test
- Can be connected to a monitor/display with a HDMI cable
- Smaller LCD screen than the Owon XSA1000 series
