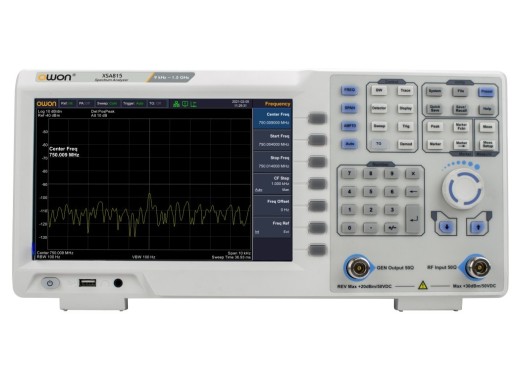

The Owon XSA815 spectrum analyser has an excellent price/quality ratio with a frequency range up to 1.5 GHz. Do you want a spectral analyser that includes a tracking generator? You can find the page of the Owon XSA815-TG here.
Furthermore, the spectrum analyser has a 9" LCD screen which is smaller than the Owon XSA1000 series spectrum analysers which have a 10.4" LCD screen.
Moreover, the minimum noise level of the analyser is -140 dBm/Hz and -160 dBm/Hz with the pre-amplifier turned on.
What differentiates Owon spectrum analysers from other spectral analysers is that it comes with certain options such as a EMI pre-compliance function, waterfall plot graphic and a standard Pass/Fail on-site test and alert function.
Model overview
| Model
| XSA815
| XSA815-TG
|
| Bandwidth
| 9 kHz - 1.5 GHz
| 9 kHz - 1.5 GHz
|
| Tracking generator
| No
| 100 kHz - 1.5 GHz
|
| Phase noise
| -80 dBc/Hz at 1 GHz and offset at 10 kHz
| -80 dBc/Hz at 1 GHz and offset at 10 kHz
|
| Display
| 9" TFT LCD
| 9" TFT LCD
|
| Noise level
| Up to -140 dBm/Hz, with pre-amplifier on up to -160 dBm/Hz
| Up to -140 dBm/Hz, with pre-amplifier on up to -160 dBm/Hz
|
| Price
|
695
€695.00
Excl. VAT
|
750
€750.00
Excl. VAT
|
Specifications
| Frequency
| 9 kHz - 1.5 GHz
|
| Resolution
| 1 Hz
|
| Tracking generator
| 100 kHz - 1.5 GHz, -40 dBm - 0 dBm
|
| Connections
| USB host/device, LAN (RJ45), HDMI
|
| Dimensions
| 375 mm x 185 mm x 120 mm
|
| Weight
| 3.7 kg
|
Accessories
The XSA815 comes by default with:
- Power Cord
- Quick guide
- USB Cable
Pros and cons
- Cost-effective Owon spectrum analyser
- Comes with options such as a EMI test function, waterfall plot graphic and a pass/fail test
- Can be connected to a monitor/display with a HDMI cable
- Smaller LCD screen than the Owon XSA1000 series
- Does not have a tracking generator
Downloads
